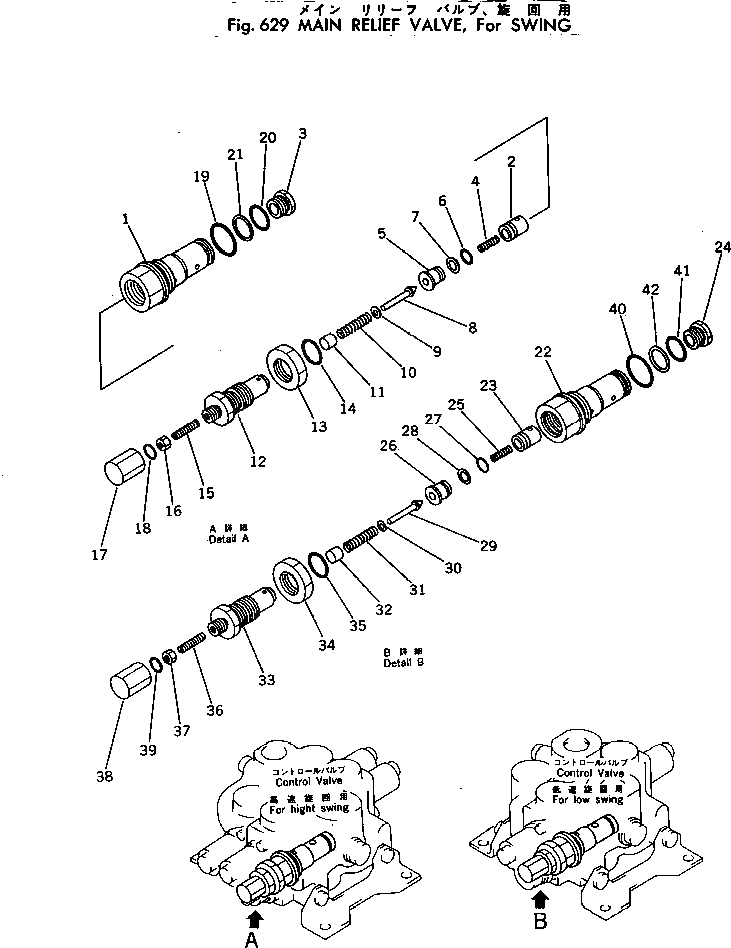

Запчасти Komatsu PC300-1 ОСНОВН. РАЗГРУЗ. КЛАПАН¤ ДЛЯ ПОВОРОТН. УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-82-22000

CONTROL VALVE A.

|1

700-83-51000

MAIN RELIEF VALVE A.

1

SLEEVE

2

VALVE

3

700-10-51230

PLUG

4

700-22-11540

SPRING

5

700-80-51170

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

700-80-51240

SPACER

10

700-80-51130

SPRING

11

700-80-51230

RETAINER

12

700-80-51320

HOLDER

13

07239-12410

NUT

14

07002-02434

O-RING

15

700-10-51211

SCREW

16

01580-00605

NUT

17

700-10-51220

COVER

18

07002-01423

O-RING

19

07002-03334

O-RING

20

700-13-31161

O-RING

21

700-80-51190

RING,BACK-UP

|22

700-81-16000

CONTROL VALVE ASS'Y

|22

700-83-59000

MAIN RELIEF VALVE A.

|22

700-82-51000

VALVE ASS'Y

22

SLEEVE

23

VALVE

24

700-10-51230

PLUG

25

700-22-11540

SPRING

26

700-80-51170

SEAT

27

07000-22012

O-RING

28

07001-02012

RING,BACK-UP

29

700-80-61190

POPPET

30

700-80-51240

SPACER

31

700-80-51130

SPRING

32

700-80-51230

RETAINER

33

700-80-51320

HOLDER

34

07239-12410

NUT

35

07002-02434

O-RING

36

700-10-51211

SCREW

37

01580-00605

NUT

38

700-10-51220

COVER

39

07002-01423

O-RING

40

07002-03334

O-RING

41

700-13-31161

O-RING

42

700-80-51190

RING,BACK-UP
