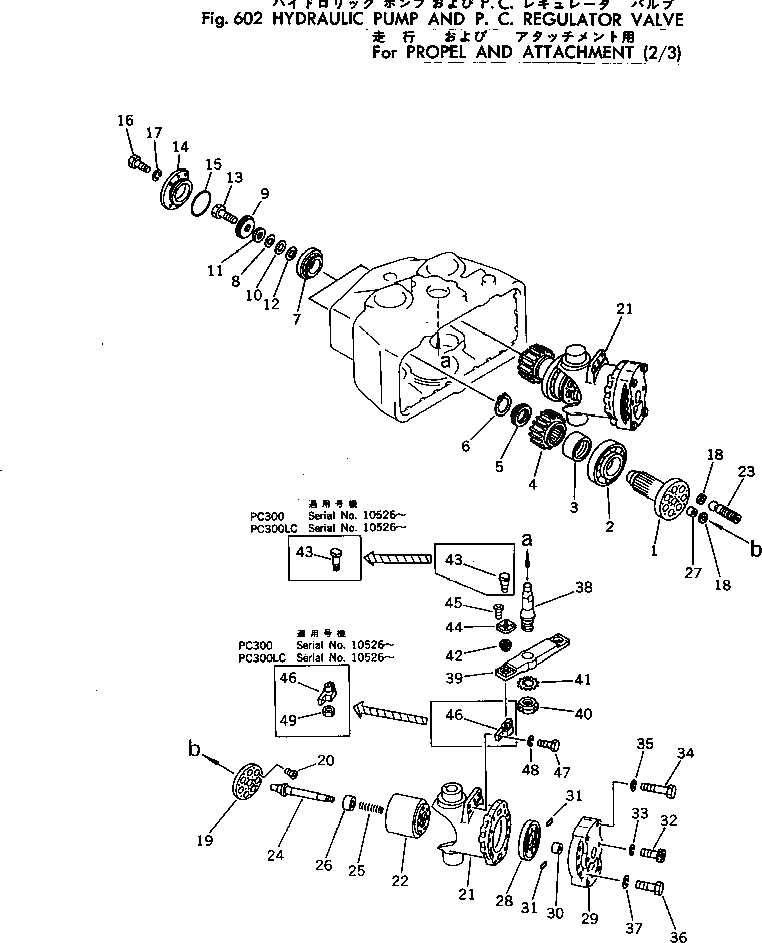

Запчасти Komatsu PC300-1 ГИДР. НАСОС. И P.C.РЕГУЛИР. КЛАПАН¤ ДЛЯ P.A.A. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
706-66-12202
HYDRAULIC PUMP ASS'Y
|1
706-66-12201
HYDRAULIC PUMP ASS'Y
|1
706-66-12200
HYDRAULIC PUMP ASS'Y
|1
706-66-43001
PUMP SUB ASS'Y
|1
706-66-43000
PUMP SUB ASS'Y
1
SHAFT
2
BEARING
3
RING
4
GEAR
4
GEAR
5
SPACER
6
RING
7
BEARING
8
SHIM
9
PLATE
10
SHIM
11
SPACER
12
SHIM
13
BOLT
14
706-66-40420
COVER
15
706-66-40430
O-RING
16
01010-50825
BOLT
17
01602-20825
WASHER,SPRING
18
HOLDER
19
RETAINER
20
SCREW
21
CASING
22
BLOCK
23
PISTON SUB ASS'Y
24
SHAFT
25
SPRING
26
RING
27
BALL
28
PLATE
29
COVER
30
O-RING
31
BEARING
32
BOLT
33
WASHER,SPRING
34
BOLT
35
WASHER,SPRING
36
BOLT
37
WASHER
38
ROD
39
LINK
40
NUT
41
WASHER
42
BEARING
43
PIN
|43
PIN
44
HOLDER
45
SCREW
46
BRACKET
|46
BRACKET
47
BOLT
48
WASHER,SPRING
49
NUT
1K
706-98-00712
DRIVE SHAFT KIT
1
706-66-40082
SHAFT
2
706-66-40880
GEAR
3
706-66-40110
RING
8
706-66-40640
SHIM
9
706-66-40480
PLATE
10
706-66-40651
SHIM
11
706-66-40490
SPACER
12
706-66-40660
SHIM
13
706-66-40710
BOLT
15
706-66-40430
O-RING
18
706-76-40251
HOLDER
19
706-76-40263
RETAINER
20
706-75-41271
SCREW
22
706-76-41091
BLOCK
23
706-76-40162
PISTON SUB ASS'Y
24
706-76-41080
SHAFT
25
706-76-41110
SPRING
26
706-76-41130
RING
27
706-76-41220
BALL
30
706-66-40460
O-RING
32
706-75-40310
BOLT
33
01602-20619
WASHER
49
706-66-40240
O-RING,(NOT SHOWN)
50
706-66-40251
RING,(NOT SHOWN)
51
07000-02060
O-RING,(NOT SHOWN)
52
07000-02080
O-RING,(NOT SHOWN)
53
07002-10823
O-RING,(NOT SHOWN)
54
07000-11006
O-RING,(NOT SHOWN)
55
07002-02434
O-RING,(NOT SHOWN)
56
07000-02125
O-RING,(NOT SHOWN)
57
706-66-40170
SEAL,(NOT SHOWN)
58
706-66-40450
GASKET,(NOT SHOWN)
Выбрано товаров: 90
