Запчасти Komatsu PC300-1 МОТОР ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

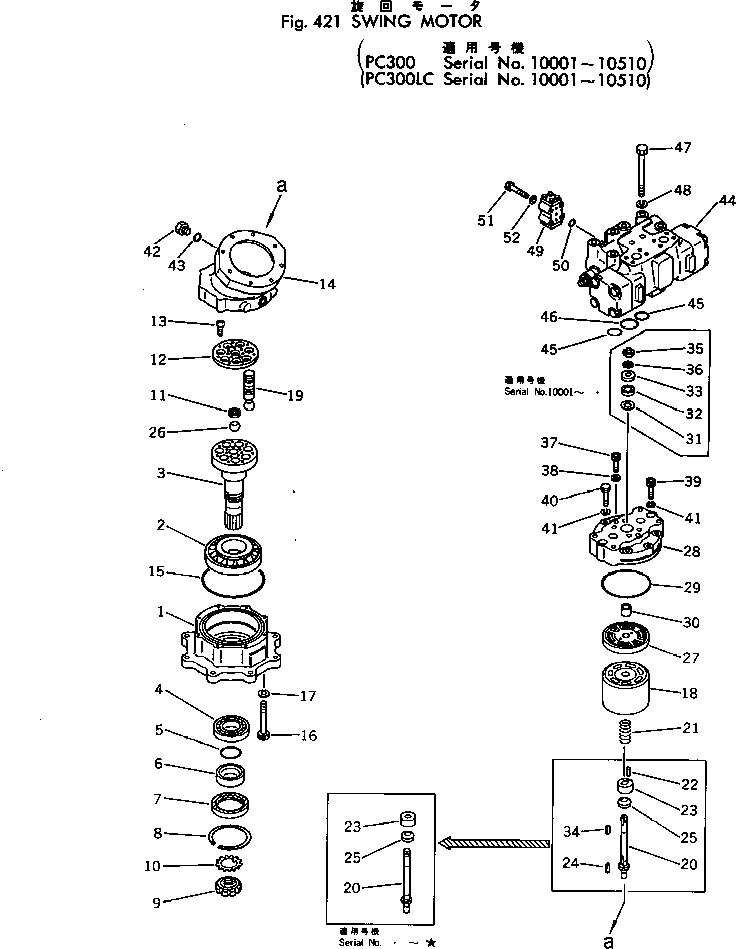

Схема запчастей Komatsu PC300-1 - МОТОР ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

Артикул

Название

Примечание

Количество

|$0

706-77-00703

MOTOR ASS'Y

|$1

706-77-00702

MOTOR ASS'Y

|$2

706-77-00701

MOTOR ASS'Y

|$3

706-77-00700

MOTOR ASS'Y

|$4

706-77-41001

MOTOR ASS'Y

|$5

706-77-41000

MOTOR ASS'Y

1

COVER

2

BEARING

3

SHAFT

4

BEARING

5

O-RING

6

RING

7

SEAL,OIL

7

SEAL,OIL

8

RING,SNAP

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

14

CASE

15

O-RING

16

BOLT

17

WASHER,SPRING

18

BLOCK

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

20

SHAFT

21

SPRING

21

SPRING

22

PIN

23

PLATE

23

PLATE

24

KEY

25

SEAT

25

SEAT

26

BALL

26

BALL

27

PLATE

27

PLATE

28

COVER

28

COVER

29

O-RING

30

BEARING

31

PLATE

32

BEARING

33

HOLDER

34

KEY

35

NUT

36

LOCK

37

BOLT

38

GASKET

39

BOLT

40

BOLT

41

WASHER,SPRING

42

07040-12012

PLUG

43

07002-02034

O-RING

44

706-77-71203

BRAKE VALVE ASS'Y

44

706-77-71202

BRAKE VALVE ASS'Y

44

706-77-71200

BRAKE VALVE ASS'Y

45

07000-13035

O-RING

46

07000-02055

O-RING

47

01011-51455

BOLT

48

01602-21442

WASHER,SPRING

49

706-77-77100

SHUTTLE VALVE A.

50

07000-12011

O-RING

51

01010-50855

BOLT

52

01602-20825

WASHER,SPRING

1K

706-98-05010

DRIVE SHAFT KIT,(EXCEPT JAPAN)

2

BEARING

3

SHAFT

5

O-RING

7

SEAL

10

WASHER

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK

19

PISTON SUB ASS'Y

20

SHAFT

21

SPRING

23

PLATE

25

SEAT

26

BALL

29

O-RING

37

BOLT

38

GASKET

Выбрано товаров: 90
