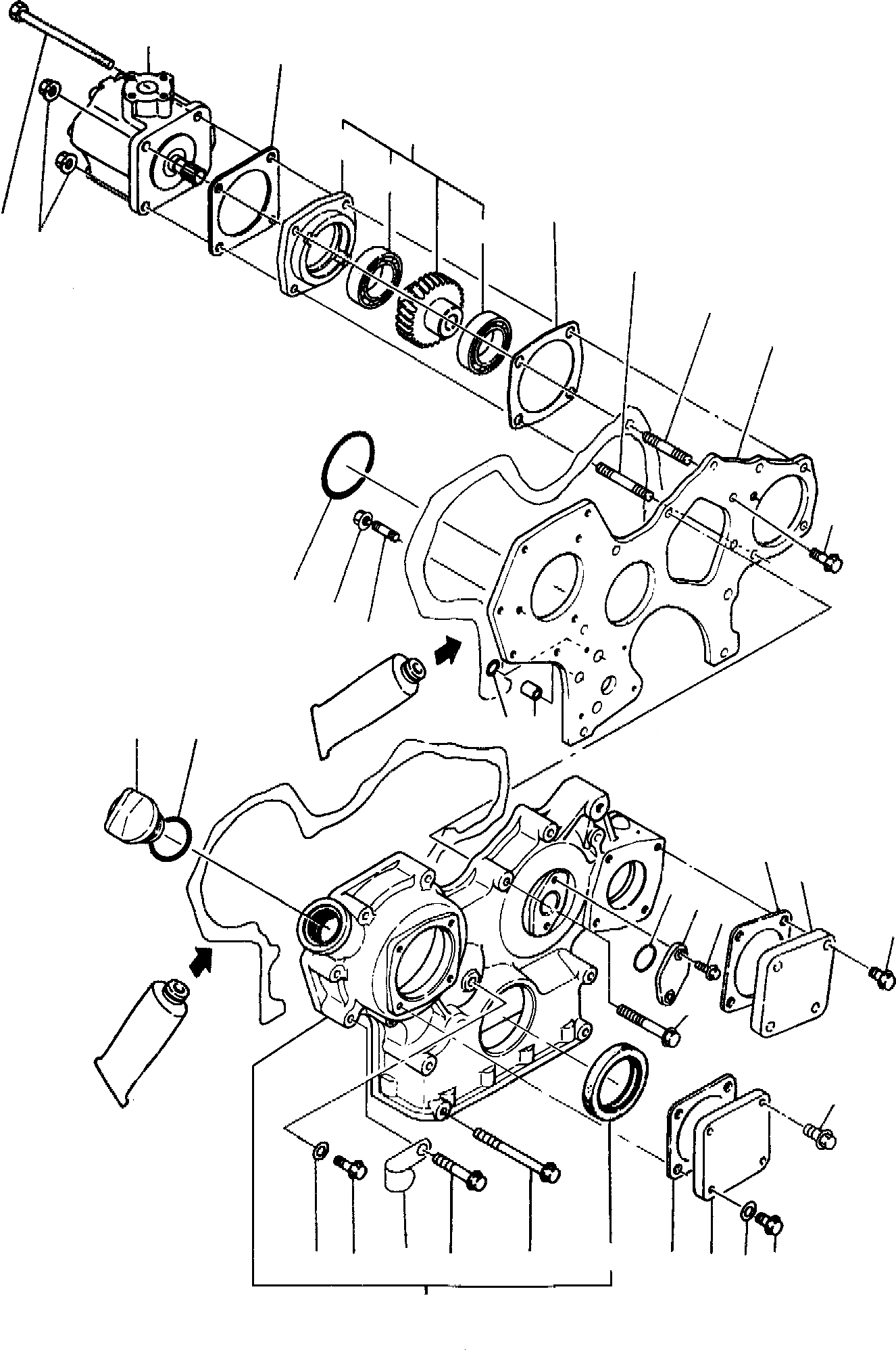

Запчасти Komatsu PC30-7 КОЖУХ ШЕСТЕРЕН. ПЕРЕДАЧИ ДВИГАТЕЛЬ

1

YMR001071

HOUSING ASSY., GEAR

3

YMR000295

SEAL, OIL

4

YMR000066

STUD

5

YMR000078

OIL PLUG

6

YMR001070

FLANGE, GEAR HOUSING

7

YMR000083

COVER

8

YMR000457

GASKET

9

YMR000296

PIPE L=18

10

YMR000073

O-RING

11

YMR000383

O-RING

12

YMR000384

O-RING

13

YMR000400

BOLT PLATED

14

YMR001082

SCREW

15

YMR000402

BOLT PLATED

16

YMR000402

BOLT PLATED

17

YMR000407

SCREW

18

YMR000409

SCREW

19

YMR000412

SCREW

20

YMR000425

NUT

21

YMR000943

GASKET

22

YMR000943

GASKET

23

YMR000053

COVER

24

YMR000388

O-RING

25

YMR000395

SCREW

26

YMR000400

BOLT PLATED

27

YMR001077

STUD

28

YMR000457

GASKET

29

YMR001078

GASKET

30

YMR000353

NUT

31

YMR001079

KIT, DRIVING SET

32

YMR001080

BRACKET

34

YMR001085

BEARING

35

YMR001067

PUMP, HYDRAULIC OIL

36

YMR001087

SCREW

37

YMR001088

STUD

38

YMR000083

COVER

39

YMR000457

GASKET

40

YMR000167

RETAINER
