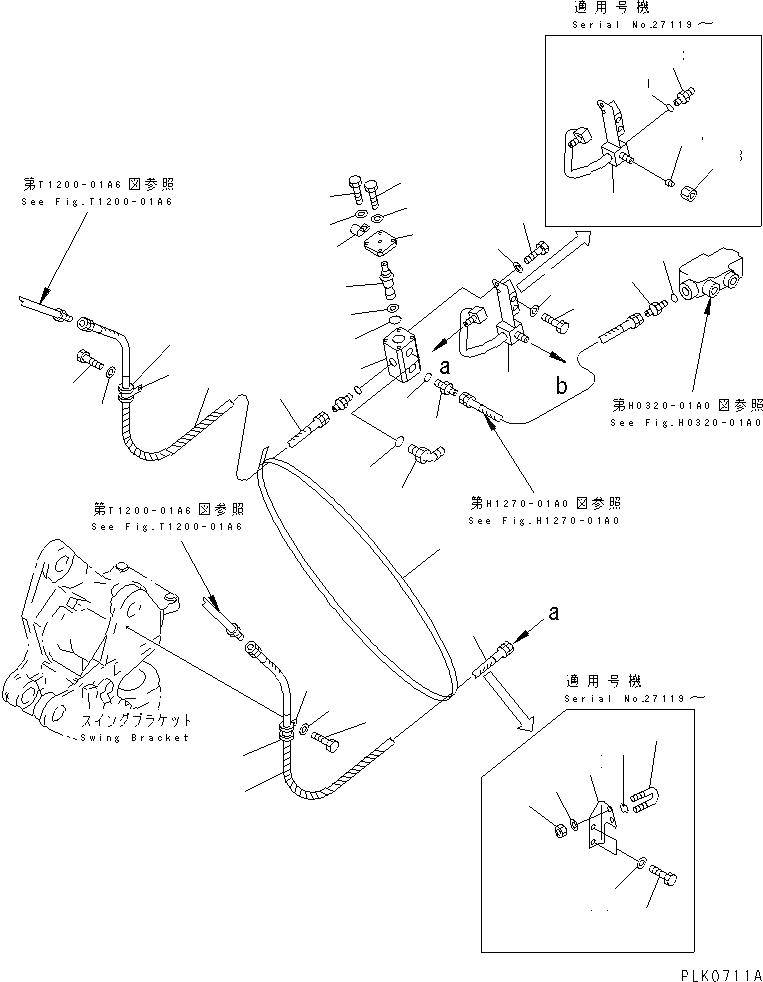

Запчасти Komatsu PC30-7 ГИДРОЛИНИЯ (ДОПОЛН. ГИДРОЛИНИЯ ЛИНИЯ) (ШАССИ) (/) ГИДРАВЛИКА

1

20S-970-7251

HOSE

1

07086-40516

HOSE

2

20S-970-7681

HOSE

2

20T-62-73620

HOSE

3

20T-62-71820

COVER

4

08034-10838

BAND

5

07095-00524

CUSHION

6

07095-00628

CUSHION

7

07094-10518

CLAMP

8

07094-10620

CLAMP

9

01010-51260

BOLT

10

01010-51280

BOLT

11

01643-31232

WASHER

12

20T-973-7271

TUBE

12

20T-973-7270

TUBE

13

01010-51020

BOLT

13

01010-51020

BOLT

14

01643-31232

WASHER

14

01643-31232

WASHER

14A

07222-00414

PLUG

14B

07221-20422

NUT

14C

07230-20422

UNION

14D

07002-02034

O-RING

14E

20S-970-7640

PLATE

|$29

20T-973-2600

VALVE ASS'Y

15

20T-973-2620

BODY

16

20T-973-2630

SPOOL

17

20T-973-2640

PLATE

18

07000-12018

O-RING

19

07001-02018

RING,BACK-UP

20

01010-50820

BOLT

21

01643-20823

WASHER

22

07230-20522

UNION

23

07002-02434

O-RING

24

07235-10422

ELBOW

25

07002-02034

O-RING

26

01010-51020

BOLT

27

01643-31032

WASHER

28

08036-03014

CLIP

29

07283-32236

CLIP

30

07283-52232

SEAT

31

01599-01011

NUT

32

01643-31032

WASHER
