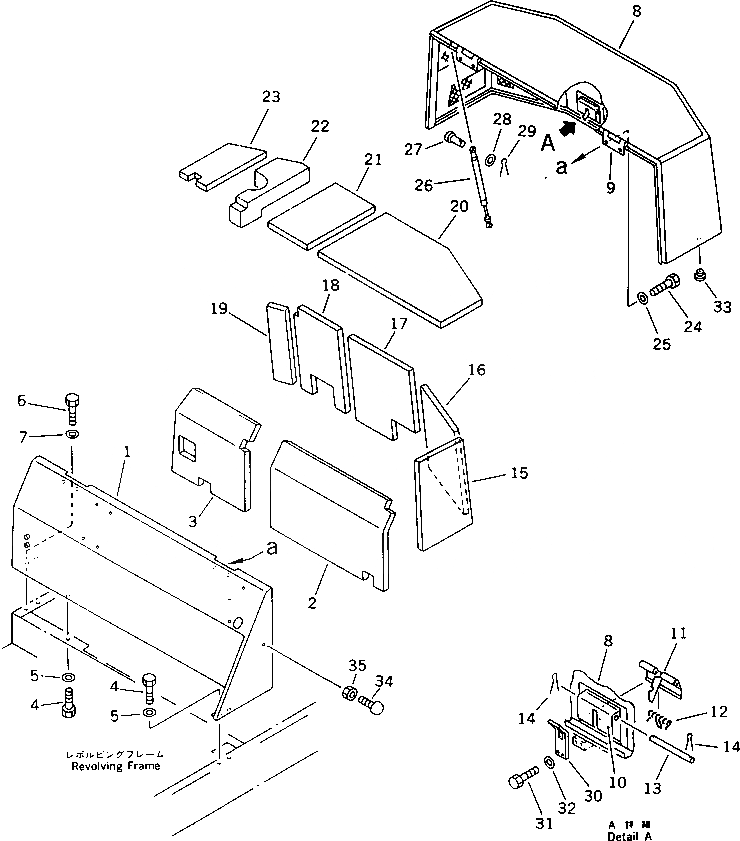

Запчасти Komatsu PC30-6 КАБИНА (/) (ДЛЯ МОЛОТА)(№-) ЧАСТИ КОРПУСА

1

20S-54-31311

COVER

2

20S-54-31320

SHEET

3

20S-54-31330

SHEET

4

01010-51030

BOLT

5

01643-31032

WASHER

6

01010-51435

BOLT

7

01643-31445

WASHER

G-1

20S-970-X140

HOOD GROUP

|$$9

====================

8

20S-970-3310

HOOD,(FOR BREAKER)

9

20S-54-31160

HINGE (WELDED)

10

20S-54-21440

COVER (WELDED)

11

20S-54-31120

LEVER

12

20T-54-26430

SPRING

13

20S-54-21460

PIN

14

04050-13018

PIN,COTTER

15

20S-54-31231

SHEET

16

20S-54-31241

SHEET

17

20S-54-31261

SHEET

18

20S-54-31251

SHEET

19

20S-970-3320

SHEET,(FOR BREAKER)

20

20S-54-31291

SHEET

21

20S-54-31221

SHEET

22

20S-54-31211

SHEET

23

20S-54-31350

SHEET

|$$26

====================

24

01010-51025

BOLT

25

01643-31032

WASHER

26

20U-54-11631

SPRING,GAS

26

20U-54-11630

SPRING,GAS

27

04205-10828

PIN

28

01641-20812

WASHER

29

04050-12015

PIN,COTTER

30

20S-54-31361

LOCK

31

01010-51035

BOLT

32

01643-31032

WASHER

33

203-54-32260

STOPPER

34

20T-54-27591

STOPPER

35

01580-11210

NUT
