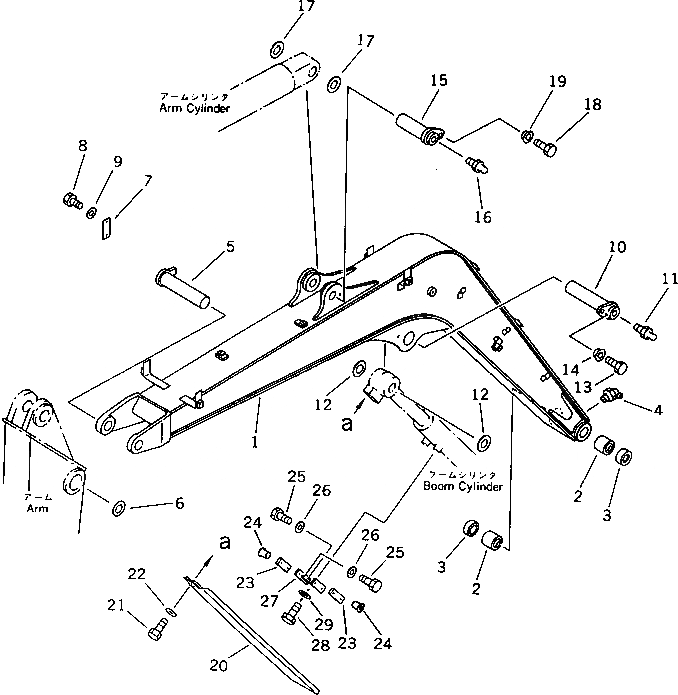

Запчасти Komatsu PC30-6 СТРЕЛА (ДЛЯ НАВЕСН. ОБОРУД СПЕЦ-Я.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

20S-973-X190

BOOM GROUP

|$$2

====================

|$2

20S-973-0110

BOOM ASS'Y

1

BOOM

2

20S-70-31170

BUSHING

3

07145-00040

SEAL,DUST

4

07020-00675

FITTING,GREASE

|$$8

====================

G-2

20S-70-X1200

BOOM PIN GROUP

|$$10

====================

5

20S-70-31140

PIN

6

20R-70-11260

SPACER, 1.0MM

7

20S-70-31240

PLATE

8

01010-51225

BOLT

9

01643-31232

WASHER

10

20S-70-31161

PIN

11

07020-00000

FITTING,GREASE

12

20R-70-11260

SPACER, 1.0MM

13

01010-51230

BOLT

14

20S-70-31180

SPACER

15

20S-70-31161

PIN

16

07020-00000

FITTING,GREASE

17

20R-70-11260

SPACER, 1.0MM

18

01010-51230

BOLT

19

20S-70-31180

SPACER

|$$26

====================

G-3

20S-70-X1600

CYLINDER COVER GROUP

|$$28

====================

20

20S-70-31720

COVER

21

01010-51020

BOLT

22

01643-31032

WASHER

23

21X-70-11410

PAD

23

20U-70-11261

PAD

24

21X-70-11420

COLLAR

25

01010-50612

BOLT

26

01643-30623

WASHER

27

20S-70-31710

BRACKET

28

01010-50812

BOLT

29

01643-30823

WASHER

|$$40

====================
