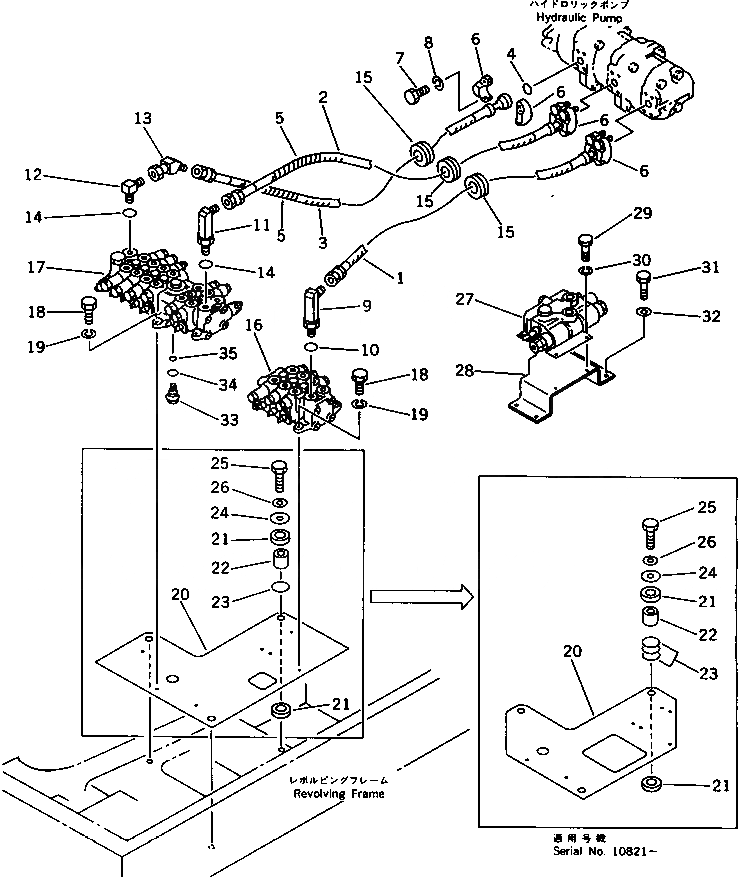

Запчасти Komatsu PC30-6 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (ДЛЯ МОЛОТА) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
1
20S-62-31260
HOSE
1
20S-62-31230
HOSE
2
20S-62-31250
HOSE
2
20S-62-31220
HOSE
3
20S-62-31240
HOSE
3
20S-62-31210
HOSE
4
07000-12021
O-RING
5
203-62-32440
COVER
6
07371-30400
FLANGE,SPLIT
7
01010-50830
BOLT
8
01602-20825
WASHER,SPRING
9
20R-62-21520
ELBOW
10
07002-12034
O-RING
11
20R-62-21510
ELBOW
12
07235-10422
ELBOW
13
20T-62-61230
TUBE
14
07002-12034
O-RING
15
08037-03614
GROMMET
16
709-33-11503
VALVE ASS'Y,(SEE FIG 6211)
16
709-33-11502
VALVE ASS'Y,(SEE FIG 6211)
16
709-33-11501
VALVE ASS'Y,(SEE FIG 6211)
16
709-33-11500
VALVE ASS'Y,(SEE FIG 6211)
17
709-36-12203
VALVE ASS'Y,(SEE FIG 6201)
17
709-36-12202
VALVE ASS'Y,(SEE FIG 6201)
17
709-36-12201
VALVE ASS'Y,(SEE FIG 6201)
17
709-36-12200
VALVE ASS'Y,(SEE FIG 6201)
18
01010-50825
BOLT
19
01602-20825
WASHER,SPRING
20
20S-60-31211
BRACKET
21
20S-60-31210
BRACKET
|$$31
(20S-60-31211,203-62-58360(6),
|$$32
07000-03025(9))
21
203-62-58360
CUSHION
21
203-62-42770
CUSHION
22
20X-62-21550
SPACER
23
07000-03025
O-RING
23
07000-03025
O-RING
24
566-35-42430
PLATE
25
01010-51250
BOLT
26
01643-31232
WASHER
G-1
20S-970-X170
CONTROL VALVE GROUP,(FOR BREAKER)
|$$42
====================
27
709-21-11200
VALVE ASS'Y,(FOR BREAKER)
28
20S-970-3410
BRACKET
29
01010-50820
BOLT
30
01602-20825
WASHER,SPRING
31
01010-51020
BOLT
32
01643-31032
WASHER
|$$49
====================
G-2
20S-970-X180
CONTROL PLUG GROUP
|$$51
====================
33
709-32-11860
PLUG
34
07002-02434
O-RING
35
700-22-11410
O-RING
|$$55
====================
Выбрано товаров: 55
