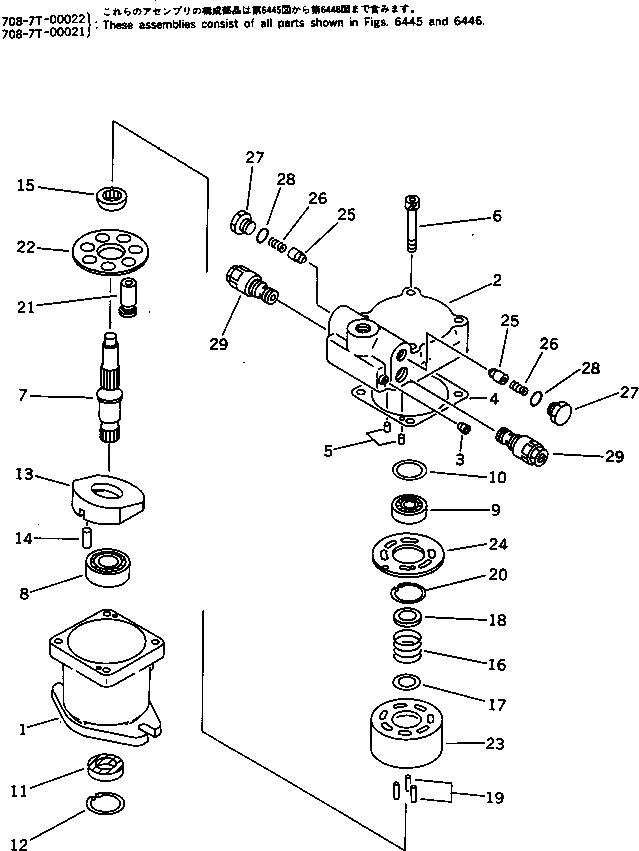

Запчасти Komatsu PC30-6 МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

708-7T-00032

SWING MOTOR ASS'Y

|$1

708-7T-00031

SWING MOTOR ASS'Y

1

708-7T-11111

CASE

2

708-7T-11511

CAP,END

2

708-7T-11510

CAP,END

|$$6

(708-7T-11511,07043-70108)

3

07043-70108

PLUG

4

708-7T-11120

GASKET

5

720-68-19610

PIN

6

708-1D-19120

BOLT

7

708-7T-12120

SHAFT

8

708-1T-12140

BEARING

9

708-1T-12150

BEARING

10

708-7T-05010

SPACER KIT

10

SPACER, 1.8MM

10

SPACER, 1.9MM

10

SPACER, 2.0MM

10

SPACER, 2.1MM

10

SPACER, 1.6MM

10

SPACER, 1.7MM

11

708-7B-12210

SEAL,OIL

12

04065-04818

RING

13

708-7T-13410

PLATE,SWASH

14

04020-01024

PIN

15

708-7T-13510

GUIDE,RETAINER

16

708-7T-13521

SPRING

17

708-7T-13530

WASHER

18

708-7T-13550

SPACER

19

708-7T-13540

PIN

20

04065-03815

RING,SNAP

21

708-7T-13351

PISTON SUB ASS'Y

22

708-7T-13342

RETAINER,SHOE

22

708-7T-13341

RETAINER,SHOE

23

708-7T-13120

BLOCK,CYLINDER

24

708-7T-13231

PLATE,VALVE

24

708-7T-13230

PLATE,VALVE

25

708-7T-16110

VALVE

26

708-7T-16120

SPRING

27

07040-11812

PLUG

28

07002-11823

O-RING

29

708-7T-02051

RELIEF VALVE ASS'Y
