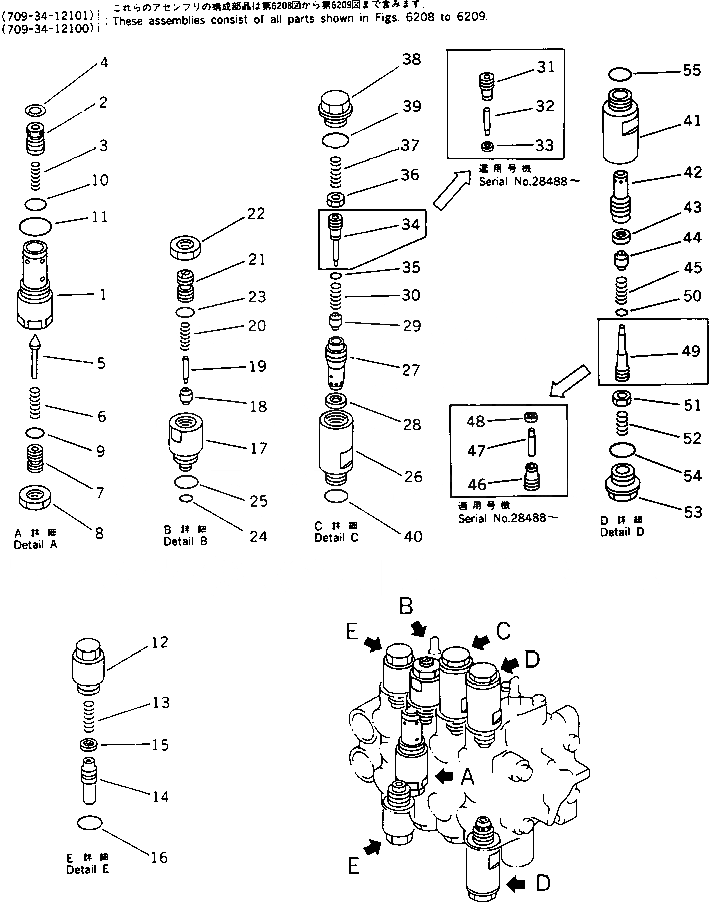

Запчасти Komatsu PC30-6 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) (ПОВОРОТН.¤ ХОД¤ ОТВАЛ¤ НАВЕСН. ОБОРУД) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-34-12101
VALVE ASS'Y
|1
709-34-12100
VALVE ASS'Y,MAIN RELIEF
|1
700-28-56000
RELIEF VALVE ASS'Y
1
SLEEVE
2
VALVE
3
700-20-51430
SPRING
4
700-20-51240
RING
5
700-80-61190
POPPET
6
700-20-51350
SPRING
7
700-20-51340
SCREW
8
01583-11408
NUT
9
07000-02011
O-RING
10
700-22-11410
O-RING
11
07002-02434
O-RING
|12
709-30-61100
VALVE ASS'Y,SUCTION
12
709-30-61110
SLEEVE
13
700-20-62170
SPRING
14
VALVE
15
SEAL
16
07002-02034
O-RING
|17
709-30-65703
VALVE ASS'Y,SAFETY
|17
709-30-65702
VALVE ASS'Y,SAFETY
17
SLEEVE
18
POPPET
|18
POPPET
19
PISTON
20
SPRING
21
SCREW
22
NUT
23
O-RING
24
709-32-11840
O-RING
25
07002-02034
O-RING
|26
709-30-64101
VALVE ASS'Y
|26
709-30-63800
VALVE ASS'Y
26
709-30-62110
SLEEVE
27
VALVE
|27
VALVE
28
SEAL
29
POPPET
|29
POPPET
30
SPRING
31
SCREW
32
PISTON
33
SEAL
34
PISTON
35
O-RING
36
NUT
37
700-20-62170
SPRING
38
709-30-62150
PLUG
39
07002-12034
O-RING
40
07002-02034
O-RING
|41
709-30-64500
VALVE ASS'Y
|41
709-30-62400
VALVE ASS'Y
41
709-30-62110
SLEEVE
42
VALVE
|42
VALVE
43
SEAL
44
POPPET
|44
POPPET
45
SPRING
46
SCREW
47
PISTON
48
SEAL
49
PISTON
50
O-RING
51
NUT
52
700-20-62170
SPRING
53
709-30-62150
PLUG
54
07002-12034
O-RING
55
07002-02034
O-RING
Выбрано товаров: 70
