Запчасти Komatsu PC30-6 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

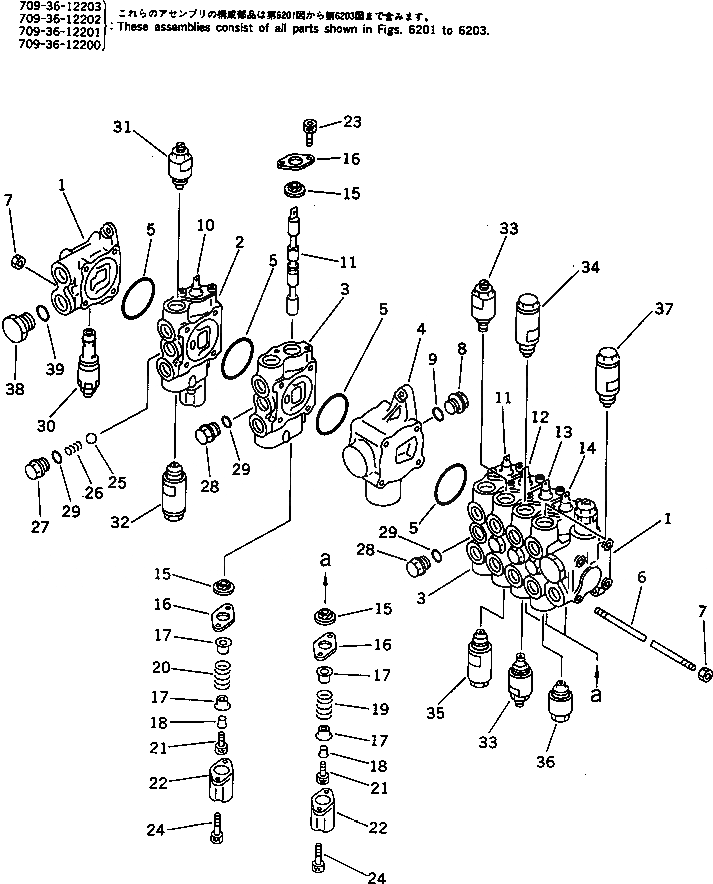

Схема запчастей Komatsu PC30-6 - 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-36-12203

VALVE ASS'Y

|1

709-36-12202

VALVE ASS'Y

|1

709-36-12201

VALVE ASS'Y

|1

709-36-12200

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-36-11510

STUD

7

01580-10806

NUT

8

PLUG

9

O-RING

10

SPOOL,ARM

11

SPOOL,TRAVEL

12

SPOOL,BUCKET

13

SPOOL,BOOM

14

SPOOL,BOOM SWING

15

709-32-11530

SEAL,DUST

16

709-32-11540

PLATE

17

709-32-11550

RETAINER

18

709-32-11560

COLLAR

19

709-32-11580

SPRING

20

709-32-11590

SPRING

21

01252-30620

BOLT

22

709-32-11570

COVER

23

01252-30610

BOLT

24

01252-30616

BOLT

25

04260-01270

BALL

26

709-32-11820

SPRING

27

709-32-11810

PLUG

28

709-32-11930

PLUG

29

07002-11823

O-RING

30

700-28-55000

RELIEF VALVE ASS'Y,MAIN RELIEF

31

709-30-65800

VALVE ASS'Y,SUCTION AND SAFETY

32

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|32

709-30-63201

VALVE ASS'Y,SUCTION AND SAFETY

|32

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

33

709-30-66200

VALVE ASS'Y,SAFETY

34

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

|34

709-30-63701

VALVE ASS'Y,SUCTION AND SAFETY

|34

709-30-63700

VALVE ASS'Y,SUCTION AND SAFETY

35

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|35

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

36

709-30-61100

VALVE ASS'Y,SUCTION

37

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|37

709-30-63601

VALVE ASS'Y,SUCTION AND SAFETY

|37

709-30-63600

VALVE ASS'Y,SUCTION AND SAFETY

38

07040-12012

PLUG

39

07002-02034

O-RING

Выбрано товаров: 50
