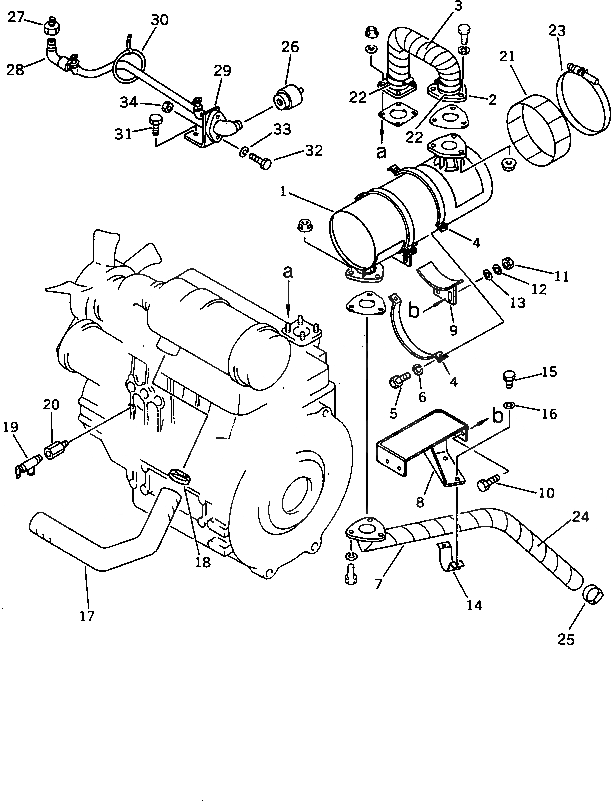

Запчасти Komatsu PC30-5 КОМПОНЕНТЫ ДВИГАТЕЛЯ (СПЕЦ-Я TBG) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20R-01-27110

MUFFLER

2

20R-01-27120

BEND

3

20S-01-11222

TAPE

4

20R-01-27220

CLAMP

5

01010-50830

BOLT

6

01602-20825

WASHER,SPRING

7

20S-01-21110

PIPE

8

20R-01-27170

BRACKET

9

20R-01-27150

BRACKET

10

01010-51025

BOLT

11

01580-11008

NUT

12

01602-21030

WASHER,SPRING

13

01643-31032

WASHER

14

20R-01-27160

CLAMP

15

01010-51020

BOLT

16

01602-21030

WASHER,SPRING

17

20S-01-21120

HOSE

18

07281-00709

CLAMP

19

203-977-4130

VALVE

20

20S-01-11210

NIPPLE

21

20S-01-11331

BAFFLE

22

V000-060000

CLAMP

23

07281-01589

CLAMP

24

20T-01-33411

TAPE

25

07281-00549

CLAMP

26

08670-20001

INDICATOR,DUST

27

20S-01-11310

NIPPLE

28

08671-00080

HOSE

29

20S-01-11320

BRACKET

30

08034-00519

BAND

31

01010-50820

BOLT

32

01010-50620

BOLT

33

01602-20619

WASHER,SPRING

34

01580-10605

NUT
