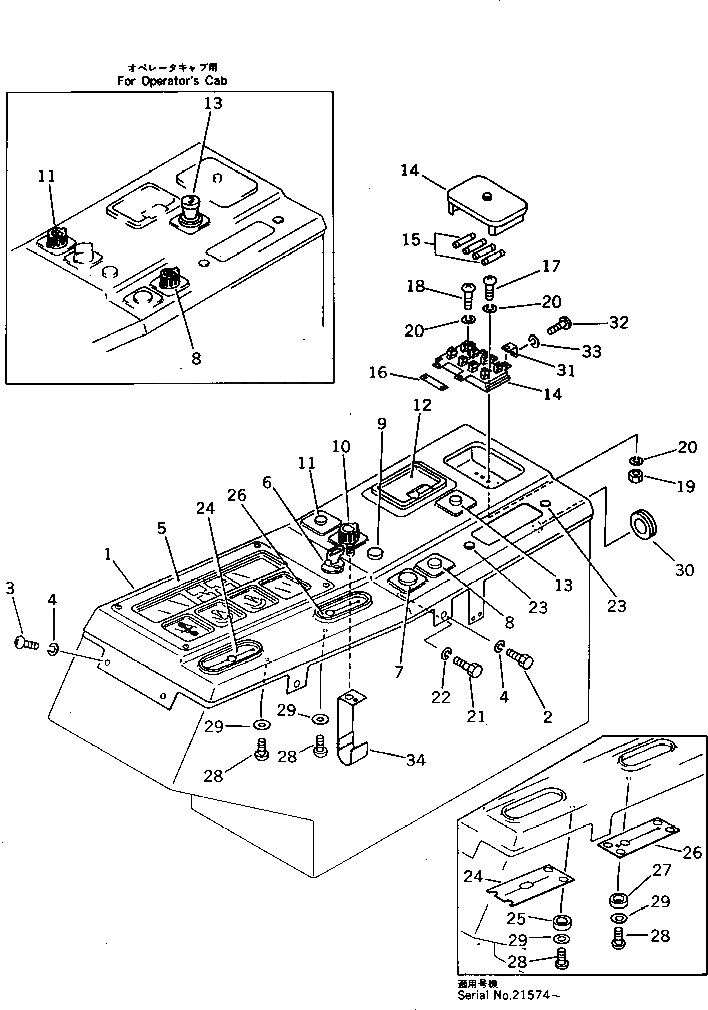

Запчасти Komatsu PC30-5 ПАНЕЛЬ ПРИБОРОВ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21270

PANEL,(FOR CAB)

1

20S-06-21260

PANEL,(FOR CANOPY)

2

01010-50820

BOLT

3

01220-40820

SCREW

4

01602-20825

WASHER,SPRING

5

20S-06-21240

GAUGE ASS'Y

6

08086-20000

SWITCH,STARTING

7

09415-01008

CAP

8

09415-00706

CAP,(FOR CANOPY)

8

205-06-71321

SWITCH,CAR HEATER (FOR CAB)

9

09415-00706

CAP

10

205-06-71331

SWITCH,LAMP

11

09415-00706

CAP,(FOR CANOPY)

11

205-06-71341

SWITCH,(FOR CAB)

12

20S-06-21210

ASHTRAY

13

09415-01610

CAP,(FOR CANOPY)

13

20S-06-21190

LIGHTER,(FOR CAB)

14

20S-06-21130

BOX

15

08040-02000

FUSE, 20A

16

150-06-14290

TERMINAL

17

01220-40525

SCREW

18

01220-40520

SCREW

19

01580-10504

NUT

20

01601-20513

WASHER,SPRING

21

01010-50610

BOLT

22

01602-20619

WASHER,SPRING

23

09415-00706

CAP

24

20S-06-21161

PLATE

24

20S-06-21160

PLATE

25

20S-06-21690

SPACER

26

20S-06-21171

PLATE

26

20S-06-21170

PLATE

27

20S-06-21690

SPACER

28

01220-40510

SCREW

29

362-54-23680

WASHER

30

08037-02512

GROMMET

31

20S-06-21150

PLATE

32

01220-40406

SCREW

33

01601-20410

WASHER,SPRING

34

20S-06-21180

CLIP
