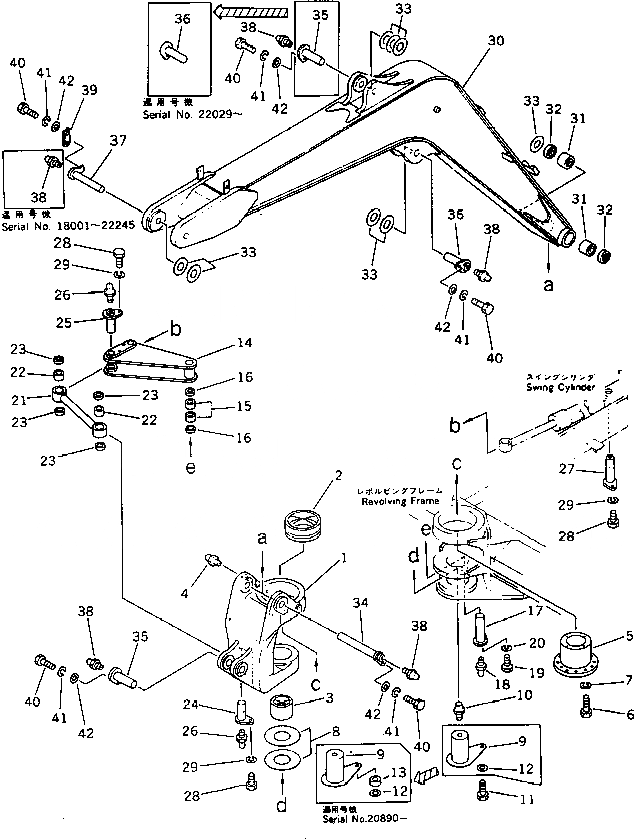

Запчасти Komatsu PC30-5 ПОВОРОТН. БЛОК И СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|$0
20S-70-00120
SWING BRACKET ASS'Y
1
BRACKET
2
20S-70-21420
BUSHING
3
20S-70-21430
BUSHING
4
07020-00000
FITTING,GREASE
5
20S-70-21440
SHAFT
6
01010-51235
BOLT
7
01602-21236
WASHER,SPRING
8
20S-70-21460
SPACER, 0.5MM
8
20S-70-21470
SPACER, 1.0MM
9
20S-70-21452
PIN
9
20S-70-21450
PIN
10
07020-00675
FITTING,GREASE
11
01010-51635
BOLT
12
20S-70-21480
WASHER
12
01643-31645
WASHER
13
20S-70-21490
SPACER
|$19
20S-70-00150
LINK ASS'Y
14
LINK
15
07143-10304
BUSHING
16
07145-00035
SEAL
17
20S-70-21330
PIN
18
07020-00000
FITTING,GREASE
19
01010-51225
BOLT
20
01602-21236
WASHER,SPRING
|$27
20S-70-00170
ROD ASS'Y
21
ROD
22
07143-10304
BUSHING
23
07145-00035
SEAL,DUST
24
20S-70-21350
PIN
25
20S-70-21360
PIN
26
07020-00000
FITTING,GREASE
27
20S-70-21340
PIN
28
01010-51225
BOLT
29
01602-21236
WASHER,SPRING
|$37
20S-70-00111
BOOM ASS'Y
|$38
20S-70-00110
BOOM ASS'Y
30
BOOM
30
BOOM
31
20S-70-11220
BUSHING
32
07145-00040
SEAL,DUST
33
20R-70-11260
SPACER, 1.0MM
34
20R-70-11163
PIN
35
20R-70-11171
PIN
35
20R-70-11171
PIN
36
20S-70-21150
PIN
36
20R-70-11181
PIN
37
20S-70-21221
PIN
37
20S-70-21220
PIN
38
07020-00000
FITTING,GREASE
38
07020-00000
FITTING,GREASE
39
20R-70-11250
PLATE
40
01010-51230
BOLT
41
01602-21236
WASHER,SPRING
42
01643-31232
WASHER
Выбрано товаров: 55
