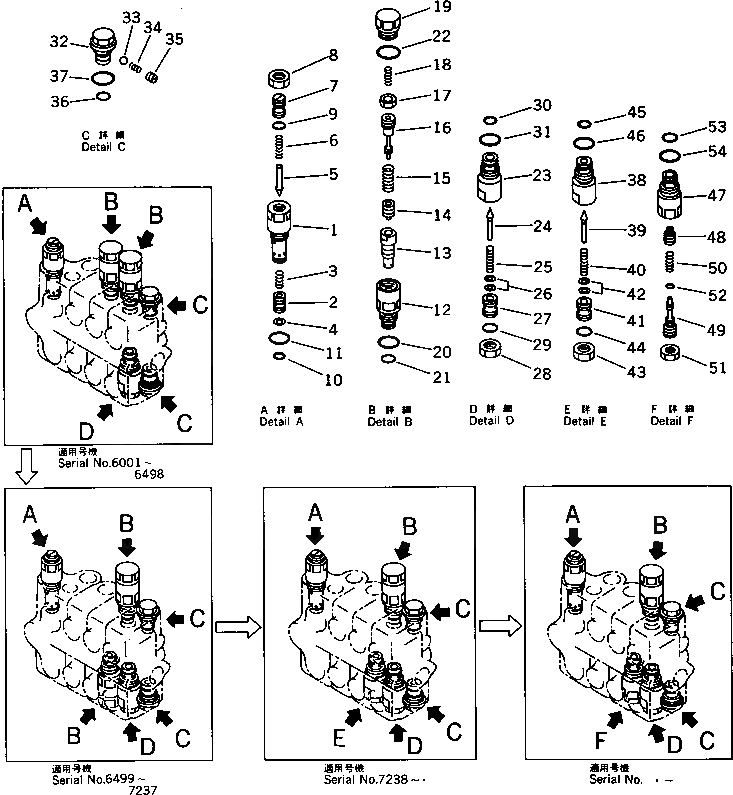

Запчасти Komatsu PC30-5 4-Х СЕКЦИОНН. CONT. КЛАПАН(/)(ПРАВ. ХОД¤КОВШ¤СТРЕЛА¤ПОВОРОТ СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-24-11604

VALVE ASS'Y

|$1

709-24-11603

VALVE ASS'Y

|$2

709-24-11602

VALVE ASS'Y

|$3

709-24-11600

VALVE ASS'Y

|$4

700-26-55000

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$16

700-20-66001

VALVE ASS'Y

|$17

700-20-66001

VALVE ASS'Y

12

700-20-62110

SLEEVE

13

VALVE

14

POPPET

15

SPRING

16

PISTON

17

NUT

18

700-20-62170

SPRING

19

700-20-62180

PLUG

20

07002-02434

O-RING

21

07000-12014

O-RING

22

07002-12434

O-RING

|$29

700-20-63001

VALVE ASS'Y

23

SLEEVE

24

POPPET

25

SPRING

26

SPACER

27

SCREW

28

NUT

29

O-RING

30

07000-12014

O-RING

31

07002-02434

O-RING

|$39

700-20-81000

VALVE ASS'Y

32

SLEEVE

33

BALL

34

SPRING

35

SCREW

36

07000-12014

O-RING

37

07002-02434

O-RING

|$46

700-20-67001

VALVE ASS'Y

38

SLEEVE

39

POPPET

40

SPRING

41

SCREW

42

SPACER

43

NUT

44

O-RING

45

07000-12014

O-RING

46

07002-02434

O-RING

|$56

700-20-68000

VALVE ASS'Y

47

SLEEVE

48

POPPET

49

PISTON

50

SPRING

51

NUT

52

O-RING

53

07000-12014

O-RING

54

07002-02434

O-RING
