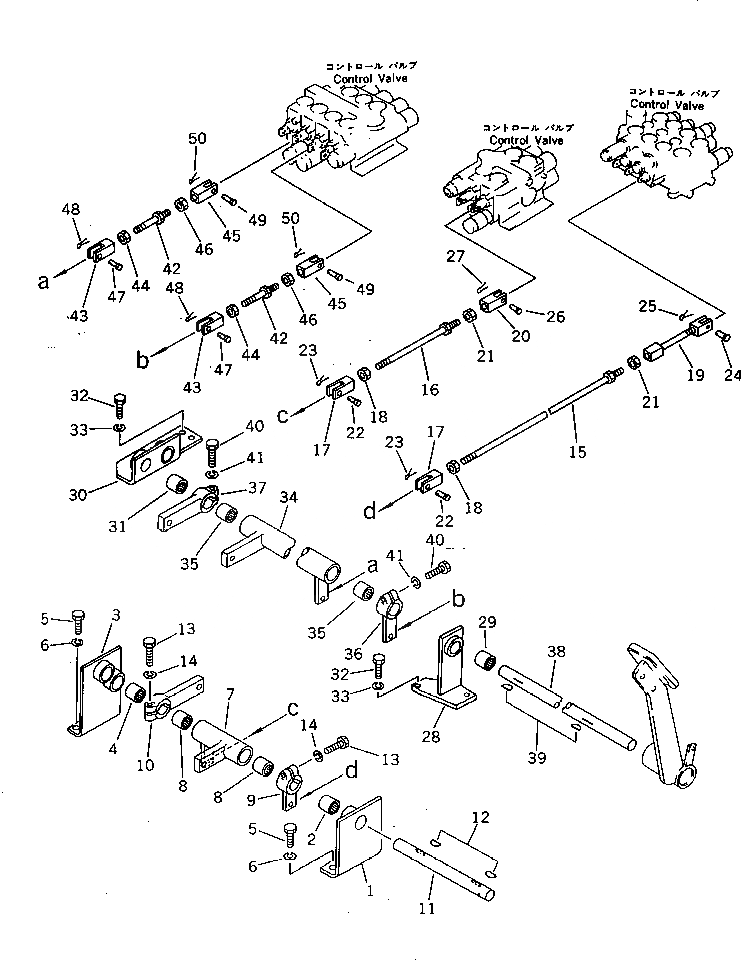

Запчасти Komatsu PC30-5 МЕХ-М УПРАВЛ-Я РАБОЧ. ОБОРУД-EM ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

1

20S-43-21540

BRACKET

2

195-61-34130

BEARING

3

20S-43-21551

BRACKET

4

195-61-34130

BEARING

5

01010-51025

BOLT

6

01602-21030

WASHER,SPRING

7

20S-43-21520

LEVER

8

195-61-34130

BEARING

9

20S-43-21530

LEVER

10

20S-43-21310

LEVER

11

20S-43-21560

SHAFT

12

04010-00519

KEY

13

01010-50830

BOLT

14

01602-20825

WASHER,SPRING

15

04248-31043

ROD

16

04248-31015

ROD

17

20S-43-12150

YOKE

18

01508-21006

NUT

19

20S-43-21580

ROD

20

201-43-21370

YOKE

21

01582-11008

NUT

22

04205-10822

PIN

23

04050-12012

PIN,COTTER

24

04205-10520

PIN

25

04050-11210

PIN,COTTER

26

04205-10622

PIN

27

04050-11610

PIN,COTTER

28

20S-43-21341

BRACKET

29

195-61-34130

BEARING

30

20S-43-21820

BRACKET

31

195-61-34130

BEARING

32

01010-51025

BOLT

33

01602-21030

WASHER,SPRING

34

20S-43-21320

LEVER

35

195-61-34130

BEARING

36

20S-43-21330

LEVER

37

20S-43-21510

LEVER

38

20S-43-21361

SHAFT

39

04010-00519

KEY

40

01010-50830

BOLT

41

01602-20825

WASHER,SPRING

42

04248-31011

ROD

43

20S-43-12150

YOKE

44

01508-21006

NUT

45

201-43-21370

YOKE

46

01582-11008

NUT

47

04205-10822

PIN

48

04050-12012

PIN,COTTER

49

04205-10622

PIN

50

04050-11610

PIN,COTTER

51

20S-43-21870

SHIM

52

20S-43-21880

SHIM
