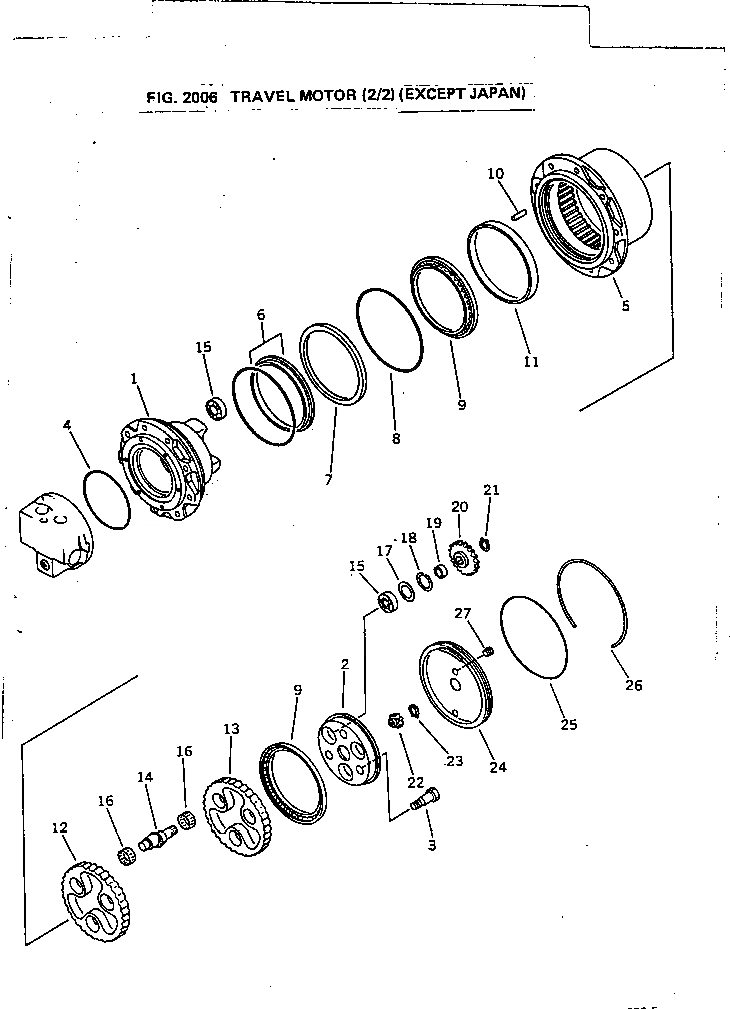

Запчасти Komatsu PC30-5 МОТОР ХОДА (/) (КРОМЕ ЯПОН.) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

20S-60-22101

TRAVEL MOTOR ASS'Y

|$2

TZ300B1101-00

SPINDLE ASS'Y

1

SPINDLE

2

FLANGE

3

TZ300B1019-00

BOLT

4

07000-12130

O-RING (KIT)

5

TZ300B1001-00

HUB

6

TZES00150A

SEAL (KIT)

7

TZ300A1010-00

PIECE,DISTANCE

8

07000-15180

O-RING (KIT)

9

TZ300A1021-00

BEARING

10

TZ300A1017-00

PIN

11

TZ300B1020-00

COLLAR

|$14

TZ300B1204-00

GEAR KIT

12

GEAR

13

GEAR

14

CRANKSHAFT

15

BEARING

16

BEARING

17

TZ300A1013-00

PIECE,DISTANCE

18

04065-04218

RING,SNAP

19

TZ300A1014-00

PIECE,DISTANCE

20

TZ300B1107-00

SPUR GEAR ASS'Y

20

GEAR

21

04064-02012

RING,SNAP

22

TZ300B1006-00

GEAR

23

04064-01510

RING,SNAP

24

TZ300A1008-00

COVER

25

TZOWG-13177

O-RING (KIT)

26

TZ300A1018-00

RING

27

TZHP00003-8

PLUG

28

TZ300B9000-00

SEAL KIT

28

07000-13022

O-RING

28

07000-12012

O-RING

28

TZ01703508

SEAL,OIL

28

07000-12020

O-RING

28

07000-12130

O-RING

28

TZES00150A

SEAL

28

07000-15180

O-RING

28

TZOWG-13177

O-RING
