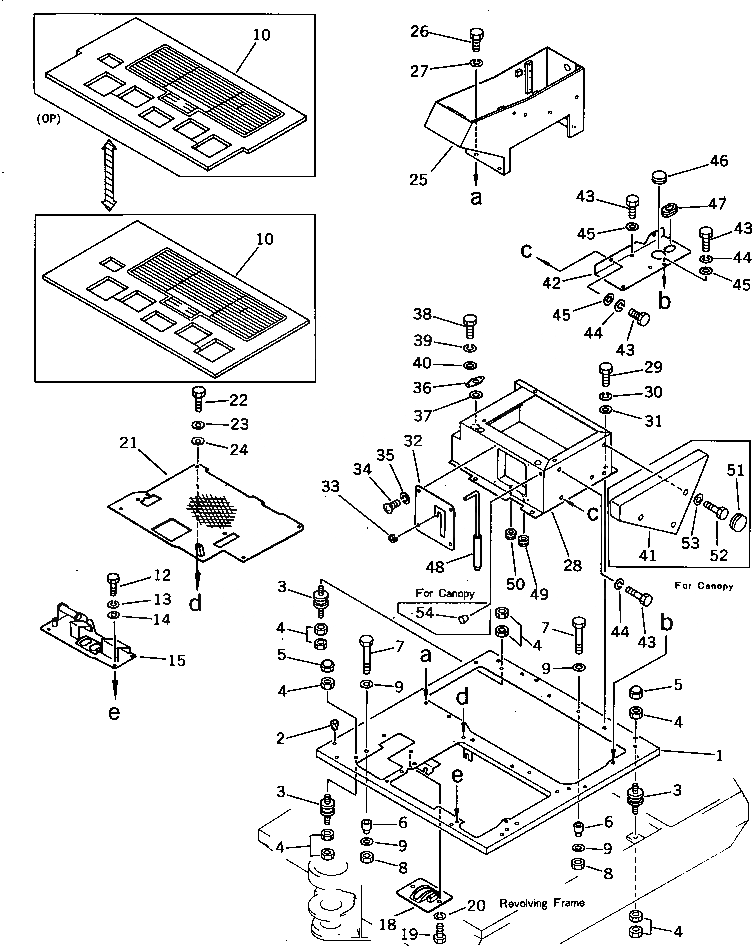

Запчасти Komatsu PC30-5 КАБИНА (/) (США СПЕЦ-Я.) (С НАВЕСН. ОБОРУД ТРУБЫ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20S-973-2310

FRAME

2

07049-01012

PLUG,(FOR CANOPY)

3

20R-01-12111

CUSHION

4

01580-11210

NUT

5

20T-54-26130

NUT

6

20T-54-11510

BOSS

7

01010-51680

BOLT

8

01580-11613

NUT

9

01643-31645

WASHER

10

20S-973-2360

MAT,(FOR CANOPY)

10

20S-973-2350

MAT,(FOR CAB)

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

01643-31032

WASHER

15

20S-973-2330

COVER

18

20S-54-22171

COVER

19

01010-51025

BOLT

20

01602-21030

WASHER,SPRING

21

20S-973-2320

FLOOR

22

01010-51025

BOLT

23

01602-21030

WASHER,SPRING

24

01643-31032

WASHER

25

20S-54-22130

BOX

26

01010-51025

BOLT

27

01602-21030

WASHER,SPRING

28

20S-54-22120

BOX

29

01010-51025

BOLT

30

01602-21030

WASHER,SPRING

31

01643-31032

WASHER

32

20S-54-22230

PLATE

33

20S-54-12310

GROMMET

34

01220-40616

SCREW

35

01602-20619

WASHER,SPRING

36

20S-54-22240

PLATE

37

20S-54-22250

SHEET

38

01010-50620

BOLT

39

01602-20619

WASHER,SPRING

40

01643-30623

WASHER

41

20S-54-22180

COVER,(FOR CANOPY)

42

20S-54-22190

COVER

43

01010-51025

BOLT

44

01602-21030

WASHER,SPRING

45

01643-31032

WASHER

46

09415-05016

CAP

47

20S-54-12340

CAP,(FOR CANOPY)

47

120-06-24110

GROMMET,(FOR CAB)

48

20S-54-12220

PIN

49

08037-01610

GROMMET

50

09415-01610

CAP

51

09415-02512

CAP,(FOR CANOPY)

52

01010-51065

BOLT,(FOR CANOPY)

53

01602-21030

WASHER,SPRING (FOR CANOPY)

54

07049-01012

PLUG,(FOR CANOPY)
