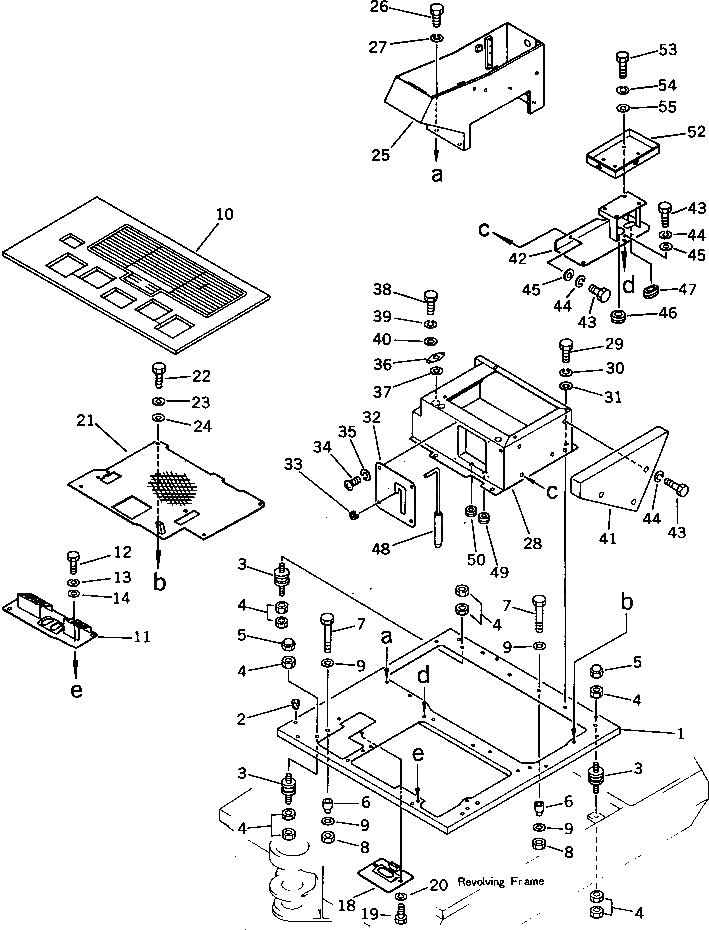

Запчасти Komatsu PC30-5 КАБИНА (СПЕЦ-Я TBG)(№88-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20S-54-22111

FRAME

1

20S-54-22110

FRAME

2

07049-01012

PLUG

3

20R-01-12111

CUSHION

4

01580-11210

NUT

5

20T-54-26130

NUT

6

20T-54-11510

BOSS

7

01010-51680

BOLT

8

01580-11613

NUT

9

01643-31645

WASHER

10

20S-54-22220

MAT

11

20S-54-24130

COVER

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

01643-31032

WASHER

18

20S-54-24120

COVER

19

01010-51025

BOLT

20

01602-21030

WASHER,SPRING

21

20S-54-22150

FLOOR

22

01010-51025

BOLT

23

01602-21030

WASHER,SPRING

24

01643-31032

WASHER

25

20S-54-22130

BOX

26

01010-51025

BOLT

27

01602-21030

WASHER,SPRING

28

20S-54-22120

BOX

29

01010-51025

BOLT

30

01602-21030

WASHER,SPRING

31

01643-31032

WASHER

32

20S-54-22230

PLATE

33

20S-54-12310

GROMMET

34

01220-40616

SCREW

35

01602-20619

WASHER,SPRING

36

20S-54-22240

PLATE

37

20S-54-22250

SHEET

38

01010-50620

BOLT

39

01602-20619

WASHER,SPRING

40

01643-30623

WASHER

41

20S-54-24110

COVER

42

01010-51025

BOLT

43

01602-21030

WASHER,SPRING

44

01643-31032

WASHER

45

09415-05016

CAP

46

120-06-24110

GROMMET,(FOR CAB)

47

20S-54-12220

PIN

48

08037-01610

GROMMET

49

09415-01610

CAP

51

20S-54-15210

CASE

52

01010-50620

BOLT

53

01602-20619

WASHER,SPRING

54

01643-30623

WASHER
