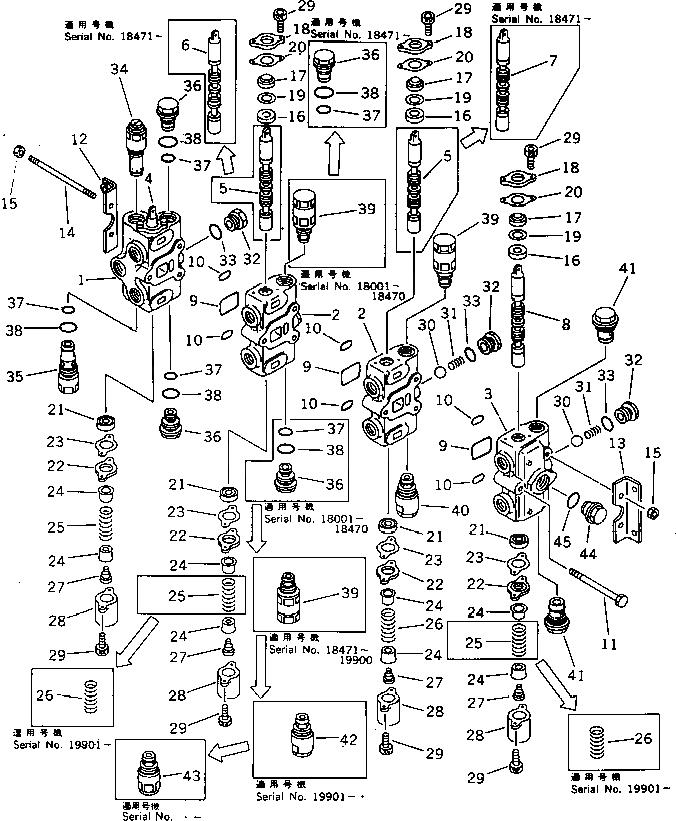

Запчасти Komatsu PC30-5 4-Х СЕКЦИОНН. CONT. КЛАПАН(/)(ПРАВ. ХОД¤КОВШ¤СТРЕЛА¤ПОВОРОТ СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-24-11604

VALVE ASS'Y

|1

709-24-11603

VALVE ASS'Y

|1

709-24-11602

VALVE ASS'Y

|1

709-24-11600

VALVE ASS'Y

1

BODY

2

BLOCK

3

COVER

4

SPOOL

5

SPOOL

6

SPOOL

7

SPOOL

8

SPOOL

|8

SPOOL

9

07000-13040

O-RING

10

700-22-11450

O-RING

11

700-24-13140

BOLT

12

700-26-11170

ANGLE

13

700-22-11220

ANGLE

14

700-24-13110

STUD

15

01580-10806

NUT

16

700-22-11252

U-PACKING

17

700-22-11261

SEAL

18

700-22-11270

PLATE

19

700-22-11430

COLLAR

20

700-22-11420

GASKET

21

700-22-11252

U-PACKING

22

700-22-11281

PLATE

23

700-22-11420

GASKET

24

700-22-11291

RETAINER

25

700-22-11311

SPRING

|25

700-22-11311

SPRING

26

700-22-13130

SPOOL

|26

700-23-13130

SPRING

27

700-22-11321

PLUG

28

700-22-11331

COVER

29

01252-30616

BOLT

30

700-22-12340

BALL

31

700-22-12350

SPRING

32

700-22-11351

PLUG

33

07002-12434

O-RING

34

700-26-55000

RELIEF VALVE ASS'Y

35

700-22-11380

PLUG

36

700-22-11360

PLUG

37

07000-12014

O-RING

38

07002-02434

O-RING

39

700-20-66001

VALVE ASS'Y

|39

700-20-66001

VALVE ASS'Y

40

700-20-63001

VALVE ASS'Y

41

700-20-81000

VALVE ASS'Y

42

700-20-67001

VALVE ASS'Y

43

700-20-68000

VALVE ASS'Y

44

700-22-11370

PLUG

45

07002-02434

O-RING
