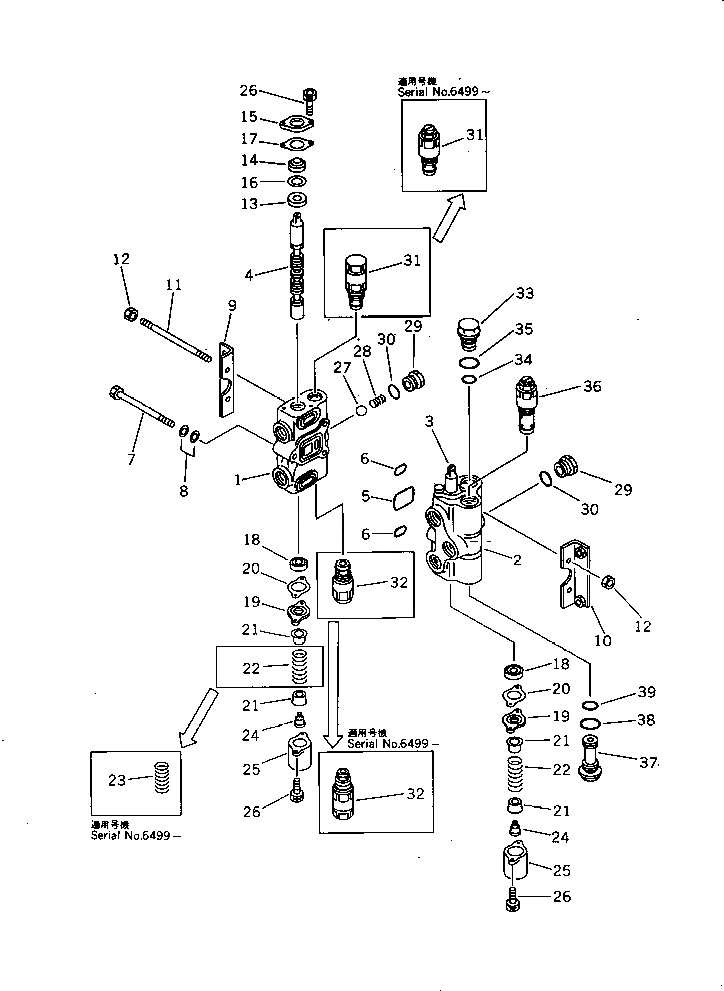

Запчасти Komatsu PC30-5 2-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) (ДЛЯ ЛЕВ. ХОД И РУКОЯТЬ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

709-22-11301

VALVE ASS'Y

|1

709-22-11300

VALVE ASS'Y

1

COVER

2

BODY

3

SPOOL

4

SPOOL

5

07000-13040

O-RING

6

700-22-11450

O-RING

7

700-81-11212

BOLT

8

01643-31032

WASHER

9

700-22-11220

ANGLE

10

700-26-11170

ANGLE

11

700-21-11110

STUD

12

01580-10806

NUT

13

700-22-11252

U-PACKING

14

700-22-11261

SEAL

15

700-22-11270

PLATE

16

700-22-11430

COLLAR

17

700-22-11420

GASKET

18

700-22-11252

U-PACKING

19

700-22-11281

PLATE

20

700-22-11420

GASKET

21

700-22-11291

RETAINER

22

700-22-11311

SPRING

|22

700-22-11311

SPRING

23

700-23-13130

SPRING

24

700-22-11321

PLUG

25

700-22-11331

COVER

26

01252-30616

BOLT

27

700-22-12340

BALL

28

700-22-12350

SPRING

29

700-22-11351

PLUG

30

07002-12434

O-RING

31

700-20-68000

VALVE ASS'Y

|31

700-20-66001

VALVE ASS'Y

32

700-20-66001

VALVE ASS'Y

|32

700-20-68000

VALVE ASS'Y

33

700-22-11360

PLUG

34

07000-12014

O-RING

35

07002-02434

O-RING

36

700-26-55000

RELIEF VALVE ASS'Y

37

700-26-11150

PLUG

38

07000-12014

O-RING

39

07002-02434

O-RING
