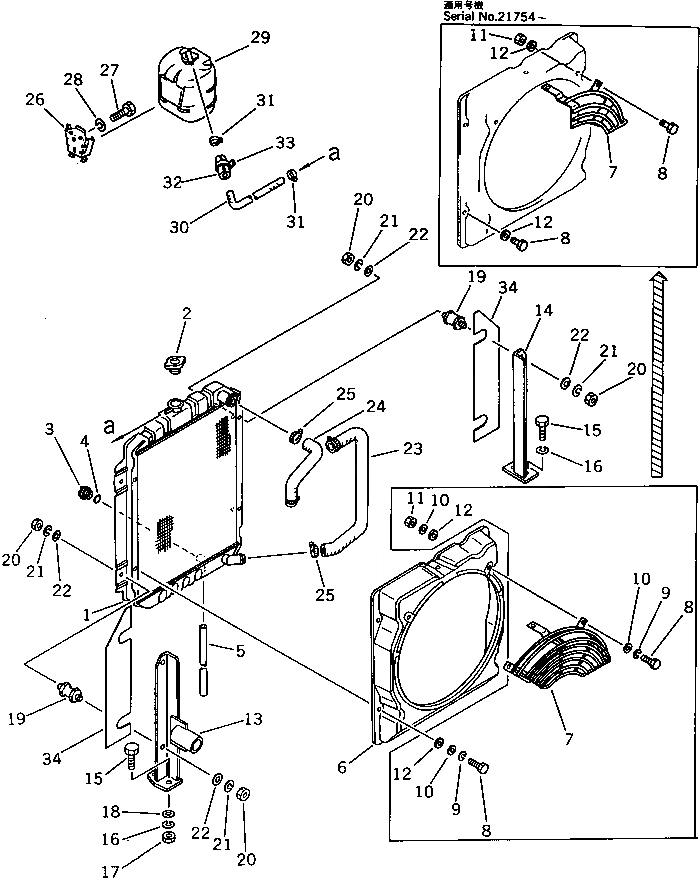

Запчасти Komatsu PC30-5 РАДИАТОР И ТРУБЫ КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|1

20S-03-21101

RADIATOR ASS'Y

|1

20S-03-21100

RADIATOR ASS'Y

1

20S-03-11212

CORE ASS'Y

2

20S-03-11250

CAP

3

20N-03-11181

PLUG

4

07000-01007

O-RING

5

07207-00820

JOINT

6

20S-03-21110

SHROUD

7

20S-03-21121

NET

|7

20S-03-21120

NET

8

01435-20814

BOLT

|8

01010-50820

BOLT

9

01602-20825

WASHER,SPRING

10

01643-30823

WASHER

11

01584-00806

NUT

|11

01580-10806

NUT

12

20S-03-11270

COLLAR

|12

20S-03-11270

COLLAR

13

20S-03-21140

BRACKET

14

20S-03-21150

BRACKET

15

01010-51025

BOLT

16

01602-21030

WASHER,SPRING

17

01580-11008

NUT

18

01643-31032

WASHER

19

20S-03-11330

CUSHION

20

01580-11008

NUT

21

01602-21030

WASHER,SPRING

22

01643-31032

WASHER

23

20S-03-12111

HOSE

24

20S-03-12121

HOSE

25

07281-00489

CLAMP

26

362-03-14120

BRACKET

27

01010-50616

BOLT

28

01602-20619

WASHER,SPRING

29

362-03-14110

TANK

30

20S-03-21130

HOSE

31

07281-00137

CLAMP

32

201-43-22190

BUSHING

33

08034-00519

BAND

34

20S-03-21160

SEAT
