Запчасти Komatsu PC30-5 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

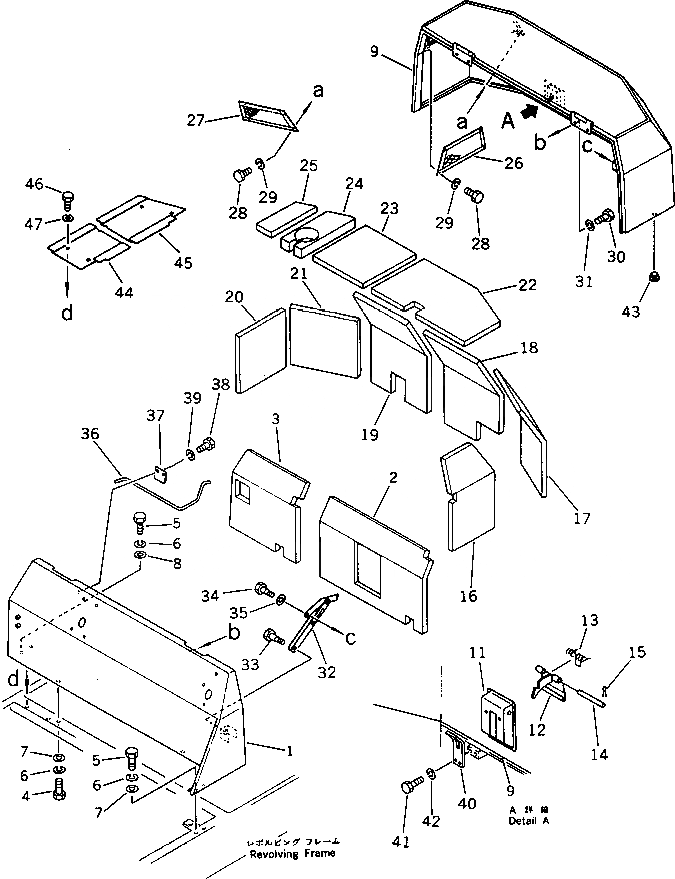

Схема запчастей Komatsu PC30-5 - КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

Артикул

Название

Примечание

Количество

|1

20S-54-21302

COVER ASS'Y

|1

20S-54-21301

COVER ASS'Y

|1

20S-54-21300

COVER ASS'Y

1

20S-54-21311

COVER

|1

20S-54-21310

COVER

2

20S-54-21610

SHEET

|2

20S-54-21330

SHEET

3

20S-54-21620

SHEET

|3

20S-54-21340

SHEET

4

01010-51025

BOLT

5

01010-51030

BOLT

6

01602-21030

WASHER,SPRING

7

01643-31032

WASHER

8

01643-31232

WASHER

|9

20S-54-21402

HOOD ASS'Y

|9

20S-54-21401

HOOD ASS'Y

|9

20S-54-21400

HOOD ASS'Y

9

20S-54-21411

HOOD

|9

20S-54-21410

HOOD

10

20R-54-21372

HINGE (WELDED)

11

20S-54-21440

COVER (WELDED)

12

20S-54-21450

LEVER

13

20T-54-26430

SPRING

14

20S-54-21460

PIN

15

04050-13018

PIN,COTTER

16

20S-54-21630

SHEET

|16

20S-54-21210

SHEET

17

20S-54-21640

SHEET

|17

20S-54-21220

SHEET

18

20S-54-21660

SHEET

|18

20S-54-21430

SHEET

19

20S-54-21650

SHEET

|19

20S-54-21420

SHEET

20

20S-54-21670

SHEET

|20

20S-54-21250

SHEET

21

20S-54-21680

SHEET

|21

20S-54-21260

SHEET

22

20S-54-21690

SHEET

|22

20S-54-21270

SHEET

23

20S-54-21710

SHEET

|23

20S-54-21280

SHEET

24

20S-54-21290

SHEET

25

20S-54-21720

SHEET

|25

20S-54-21350

SHEET

26

20S-54-21120

COVER

27

20S-54-21130

COVER

28

01010-50816

BOLT

29

01602-20825

WASHER,SPRING

30

01010-51020

BOLT

31

01602-21030

WASHER,SPRING

32

20R-54-21430

STAY

33

20R-54-21440

BOLT

34

20R-54-21450

BOLT

35

07005-01412

GASKET

36

20S-54-21142

BAR

37

20S-54-21160

BRACKET

38

01010-51020

BOLT

39

01602-21030

WASHER,SPRING

40

20R-54-21170

LOCK

41

01010-51025

BOLT

42

01602-21030

WASHER,SPRING

43

203-54-32260

STOPPER

44

20S-54-21380

COVER

45

20S-54-21390

COVER

46

01010-51020

BOLT

47

01602-21030

WASHER

48

20S-54-21170

CLIP,SPRING

Выбрано товаров: 67
