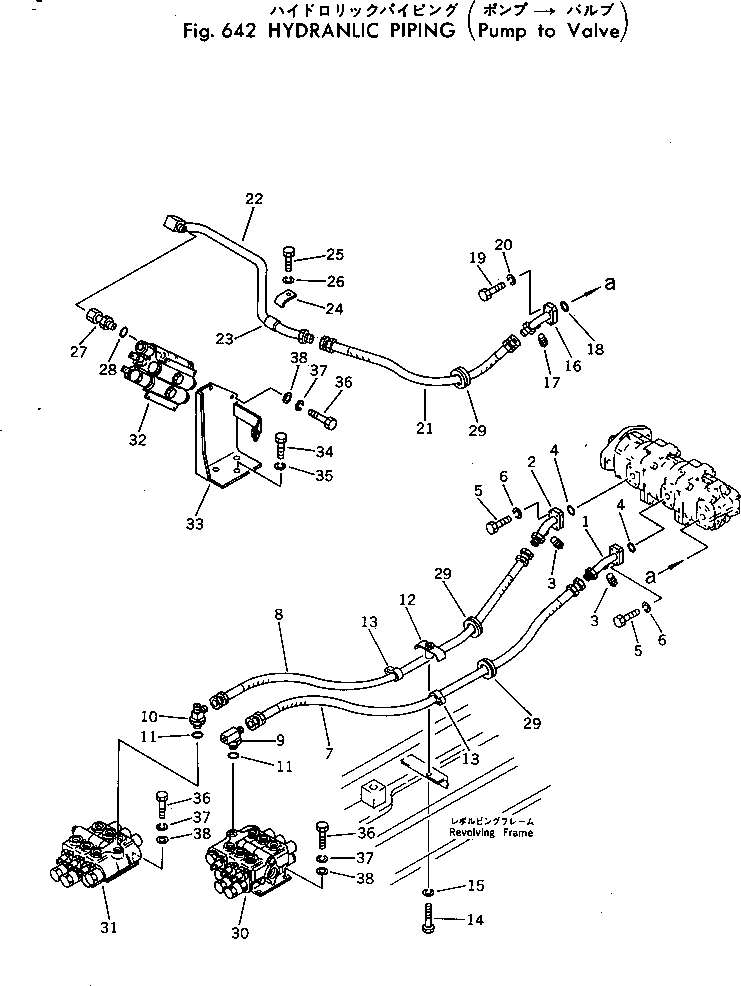

Запчасти Komatsu PC30-3 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) ГИДРАВЛИКА

1

20S-62-11270

TUBE

2

20S-62-11280

TUBE

3

07042-20108

PLUG

4

07000-13025

O-RING

5

01010-50835

BOLT

6

01602-20825

WASHER,SPRING

7

20R-62-21490

HOSE

8

20R-62-21410

HOSE

9

20S-967-1440

TEE

10

20S-967-1450

TEE

11

07002-12434

O-RING

12

20S-62-11320

CLAMP

13

202-98-11360

BUSHING

14

01010-51065

BOLT

15

01602-21030

WASHER,SPRING

16

20S-62-15130

TUBE

17

07042-20108

PLUG

18

07000-13025

O-RING

19

01010-50835

BOLT

20

01602-20825

WASHER,SPRING

21

07108-20404

HOSE

22

20S-967-1310

TUBE

23

20S-62-11910

SHEET

24

20S-62-11890

CLAMP

25

01010-51025

BOLT

26

01602-21030

WASHER,SPRING

27

20S-62-15150

TUBE

28

07002-12434

O-RING

29

08037-03614

GROMMET

30

700-23-36001

VALVE ASS'Y

31

700-23-35002

VALVE ASS'Y

32

700-22-44000

VALVE ASS'Y

33

20S-967-1420

BRACKET

34

01010-31225

BOLT

35

01602-01236

WASHER,SPRING

36

01010-50825

BOLT

37

01602-20825

WASHER,SPRING

38

01643-30823

WASHER
