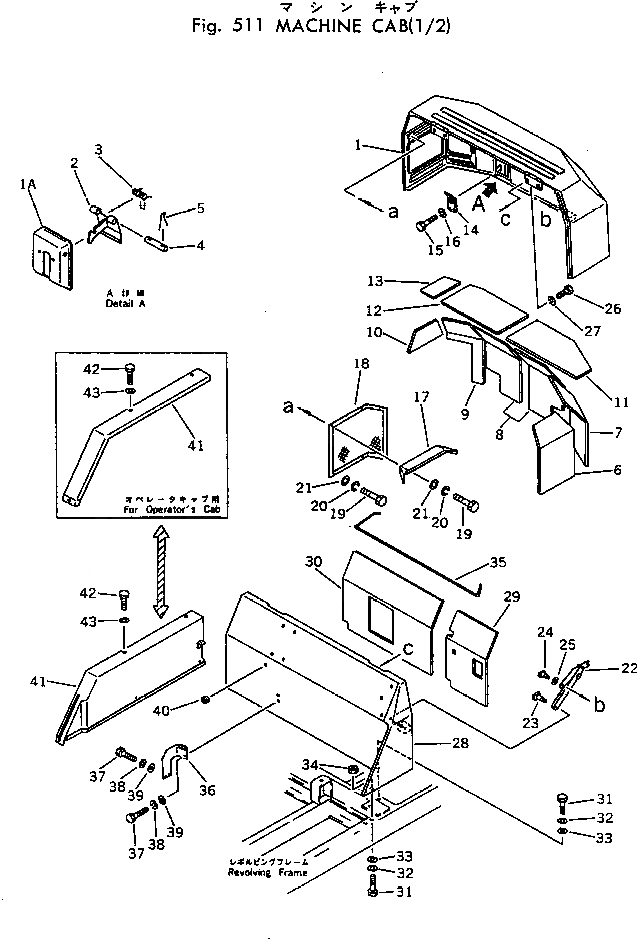

Запчасти Komatsu PC30-3 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

|$0

20R-54-21700

HOOD ASS'Y

1

20R-54-21351

HOOD

1A

20R-54-21180

COVER

2

20R-54-21160

LEVER

3

20T-54-26430

SPRING

4

09461-00022

PIN

5

04050-13018

PIN,COTTER

6

20R-54-21710

SHEET

7

20R-54-21720

SHEET

8

20R-54-21730

SHEET

9

20R-54-21740

SHEET

10

20R-54-21750

SHEET

11

20R-54-21770

SHEET

12

20R-54-21780

SHEET

13

20R-54-21760

SHEET

14

20R-54-21170

LOCK

15

01010-31025

BOLT

16

01602-01030

WASHER,SPRING

17

20R-54-21331

COVER

18

20R-54-21341

COVER

19

01010-30820

BOLT

20

01602-00825

WASHER,SPRING

21

01643-30823

WASHER

22

20R-54-21430

STAY

23

20R-54-21440

BOLT

24

20R-54-21450

BOLT

25

07005-01412

GASKET

26

01010-31020

BOLT

27

01602-01030

WASHER,SPRING

27

20R-54-21800

COVER ASS'Y

28

20R-54-21363

COVER

29

20R-54-21820

SHEET

30

20R-54-21810

SHEET

31

01010-31025

BOLT

32

01602-01030

WASHER,SPRING

33

01643-31032

WASHER

34

01580-01008

NUT

35

20R-54-21290

BAR,TORSION

36

20R-54-21321

BRACKET

37

01010-31025

BOLT

38

01602-01030

WASHER,SPRING

39

01643-31032

WASHER

40

112-860-1360

GROMMET

41

20R-54-21510

COVER,(FOR CANOPY)

41

20R-54-21610

COVER,(FOR CAB)

42

01010-31020

BOLT,(FOR CANOPY)

42

01010-31020

BOLT,(FOR CAB)

43

01643-31032

WASHER,(FOR CANOPY)

43

01643-31032

WASHER,(FOR CAB)
