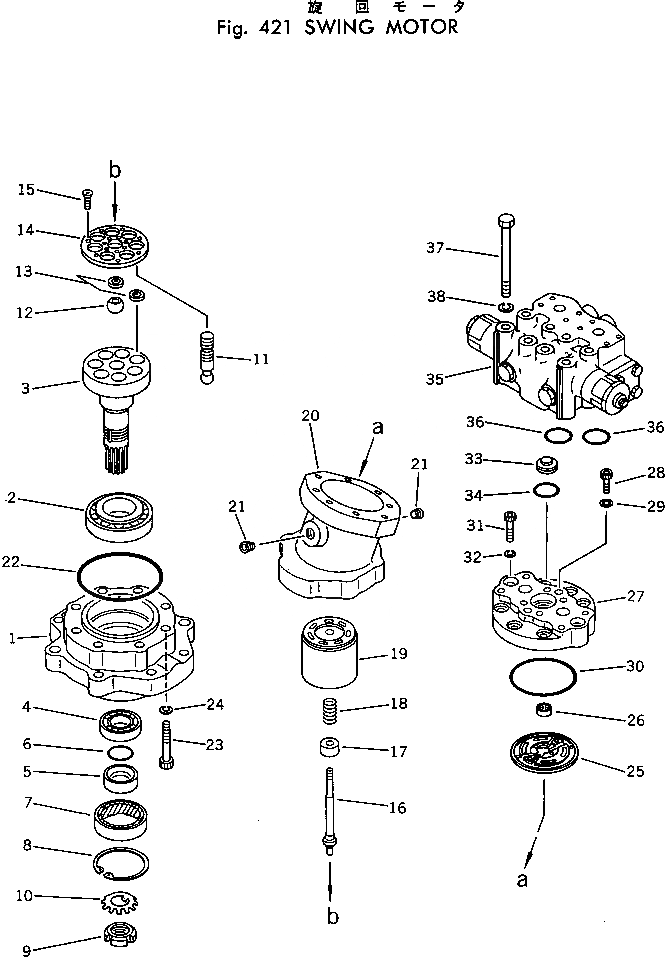

Запчасти Komatsu PC30-3 МОТОР ПОВОРОТА ПОВОРОТН. СИСТЕМА

|$0

706-73-08700

SWING MOTOR ASS'Y

|$2

706-73-43002

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING

3

SHAFT,DRIVE

4

BEARING

5

RING

6

O-RING

7

SEAL,OIL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

PISTON ASS'Y

12

BALL,CENTER

13

HOLDER

14

RETAINER

15

SCREW

16

SHAFT,CENTER

17

RING,CENTER

18

SPRING

19

BLOCK,CYLINDER

20

CASE,PUMP

21

706-73-40360

PLUG

22

O-RING

23

BOLT

24

WASHER,SPRING

25

PLATE,VALVE

26

BEARING

27

COVER,END

28

BOLT

29

GASKET,SEAL

30

O-RING

31

BOLT

32

WASHER,SPRING

33

706-73-40830

CAP

34

07000-03028

O-RING

35

706-73-72700

VALVE ASS'Y,BRAKE

36

07000-13025

O-RING

37

01011-51000

BOLT

38

01602-21030

WASHER,SPRING
