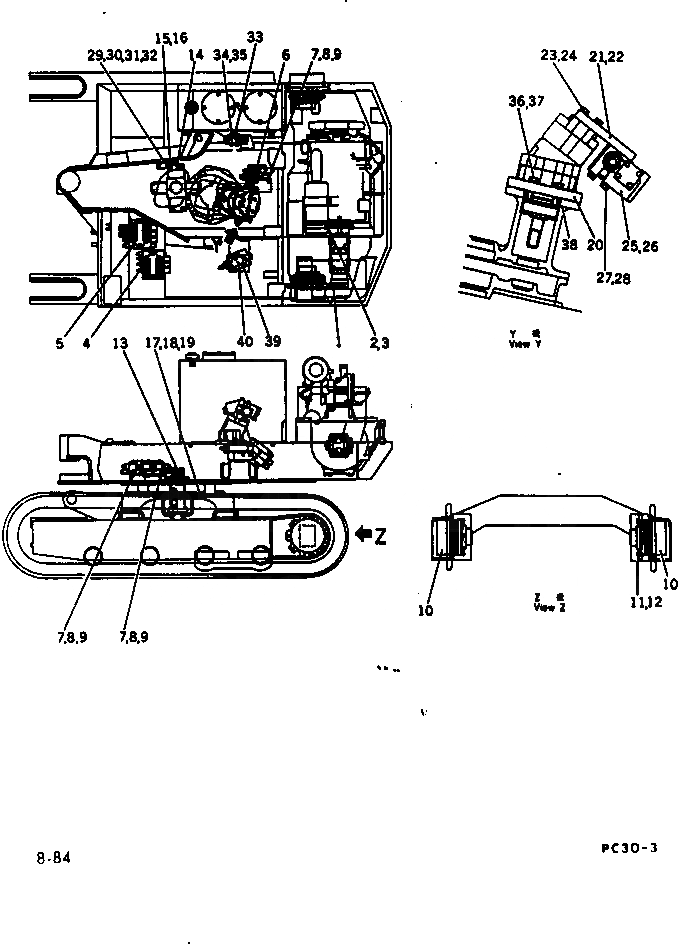

Запчасти Komatsu PC30-3 ГИДРАВЛ БЛОК (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

705-56-14000

PUMP ASS'Y

2

01010-51235

BOLT

3

01643-31232

WASHER

4

700-23-38000

VALVE ASS'Y

5

700-23-37001

VALVE ASS'Y

6

700-22-44000

VALVE ASS'Y

7

01010-50825

BOLT

8

01602-20825

WASHER,SPRING

9

01643-30823

WASHER

10

20S-60-12100

MOTOR ASS'Y

11

01010-51230

BOLT

12

01643-21232

WASHER

13

703-05-12110

SWIVEL JOINT ASS'Y

14

20S-60-12110

PLATE

15

01010-51240

BOLT

16

01602-21236

WASHER,SPRING

17

01010-51240

BOLT

18

01602-21236

WASHER,SPRING

19

01643-31232

WASHER

20

706-73-00600

MOTOR ASS'Y

21

20S-60-13110

FLANGE

22

07000-13025

O-RING

23

01010-51040

BOLT

24

01602-21030

WASHER,SPRING

25

706-73-72700

VALVE ASS'Y

26

07000-13025

O-RING

27

01011-51000

BOLT

28

01602-21030

WASHER,SPRING

29

20S-60-13120

SWITCH,PRESSURE

30

01220-40545

SCREW

31

01601-20513

WASHER,SPRING

32

01641-20508

WASHER

33

20S-60-12120

CHECK VALVE ASS'Y

34

01010-50865

BOLT

35

01602-20825

WASHER,SPRING

36

01010-51245

BOLT

37

01602-21236

WASHER,SPRING

38

07000-02085

O-RING

39

20S-967-1500

VALVE ASS'Y

40

702-15-33000

VALVE ASS'Y
