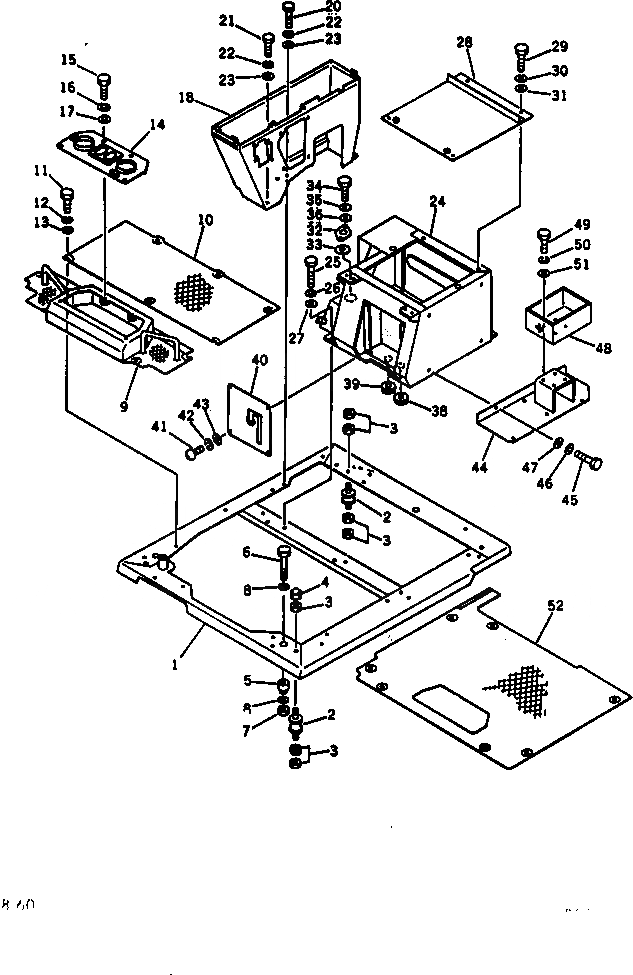

Запчасти Komatsu PC30-3 КАБИНА (/) (СПЕЦ-Я TBG) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20S-54-15110

FRAME

2

20R-01-12111

CUSHION

3

01580-11210

NUT

4

20T-54-26130

NUT

5

20T-54-11510

BOSS

6

01010-31680

BOLT

7

01580-11613

NUT

8

01643-21645

WASHER

9

20S-54-12130

FLOOR

10

20S-54-12140

FLOOR

11

01010-31025

BOLT

12

01602-01030

WASHER,SPRING

13

01643-31032

WASHER

14

20S-54-15240

COVER

15

113-B44-1230

BOLT

16

01602-01030

WASHER,SPRING

17

01643-31032

WASHER

|$17

20S-54-00010

BOX ASS'Y

18

20S-54-15140

BOX,PANEL

19

09350-02020

BUSHING,(NOT SHOWN)

20

01010-31035

BOLT

21

01010-31025

BOLT

22

01602-01030

WASHER,SPRING

23

01643-31032

WASHER

24

20S-54-15120

BOX

25

01010-31025

BOLT

26

01602-01030

WASHER,SPRING

27

01643-31032

WASHER

28

20S-54-15150

COVER

29

01010-31025

BOLT

30

01602-01030

WASHER,SPRING

31

01643-31032

WASHER

32

20S-54-12190

PLATE

33

20S-54-12210

SHEET

34

01010-30620

BOLT

35

01602-00619

WASHER,SPRING

36

01643-30623

WASHER

37

20S-54-12220

PIN,SWING LOCK

38

08037-01610

GROMMET

39

09415-01610

CAP

40

20S-54-15160

PLATE

41

01220-40616

SCREW

42

01602-00619

WASHER,SPRING

43

01643-30623

WASHER

44

20S-54-15130

COVER

45

01010-31025

BOLT

46

01602-01030

WASHER,SPRING

47

01643-31032

WASHER

48

20S-54-15210

CASE

49

01010-30620

BOLT

50

01602-00619

WASHER,SPRING

51

01643-30623

WASHER

52

20S-54-15190

SHEET
