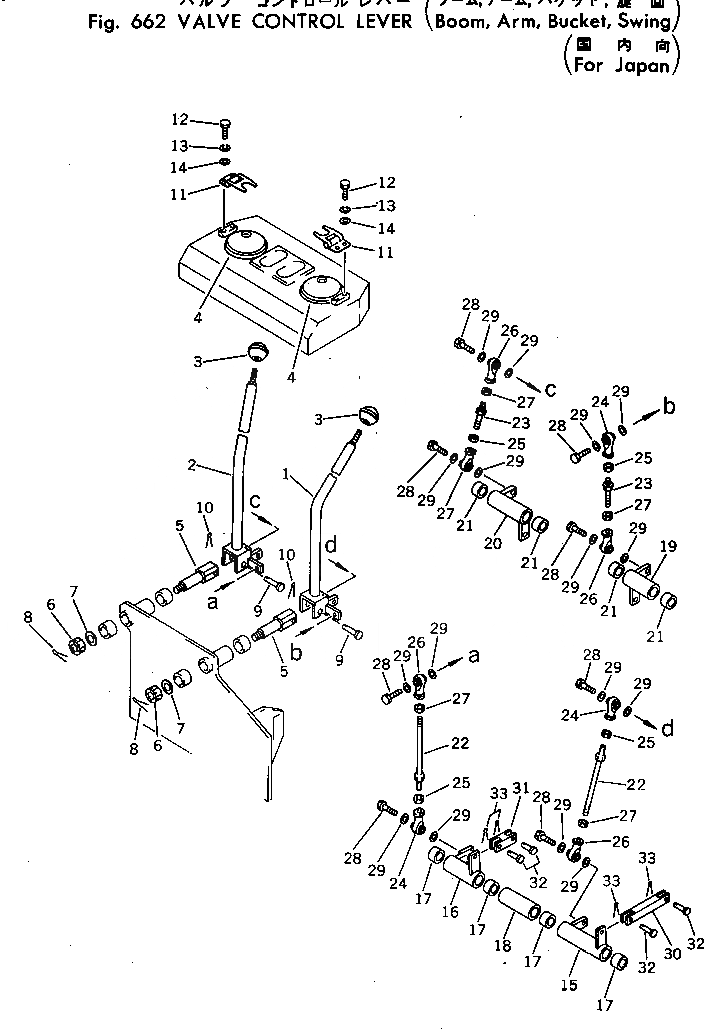

Запчасти Komatsu PC30-3 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤РУКОЯТЬ¤КОВШ¤ПОВОРОТН.¤)(ДЛЯ ЯПОН.) ГИДРАВЛИКА

1

20S-43-11550

LEVER

2

20S-43-11560

LEVER

3

20R-43-11280

KNOB

4

20S-43-11370

COVER

5

20S-43-11380

SHAFT

6

01593-11411

NUT

7

20S-43-11390

WASHER

8

04050-13022

PIN,COTTER

9

20S-43-11410

PIN

10

04050-13020

PIN,COTTER

11

20S-43-11422

LOCK

12

01010-30820

BOLT

13

01602-00825

WASHER,SPRING

14

01643-30823

WASHER

|15

20S-43-00300

LEVER ASS'Y,L.H.

|15

20S-43-00330

LEVER ASS'Y,R.H.

15

LEVER,L.H.

16

LEVER,R.H.

17

09350-02220

BUSHING

18

20S-43-11430

COLLAR

|19

20S-43-00310

LEVER ASS'Y,L.H.

|19

20S-43-00320

LEVER ASS'Y,R.H.

19

LEVER,L.H.

20

LEVER,R.H.

21

09350-02220

BUSHING

22

04248-31271

ROD

23

20S-43-11471

ROD

24

04250-51265

END,ROD

25

01582-11210

NUT

26

04250-71265

END,ROD¤ L.H. THREAD

27

01508-21207

NUT,L.H. THREAD

28

01010-31235

BOLT

29

04254-01232

SPACER

30

20S-43-11340

YOKE

31

20S-43-11350

YOKE

32

04205-10622

PIN

33

04050-11610

PIN,COTTER
