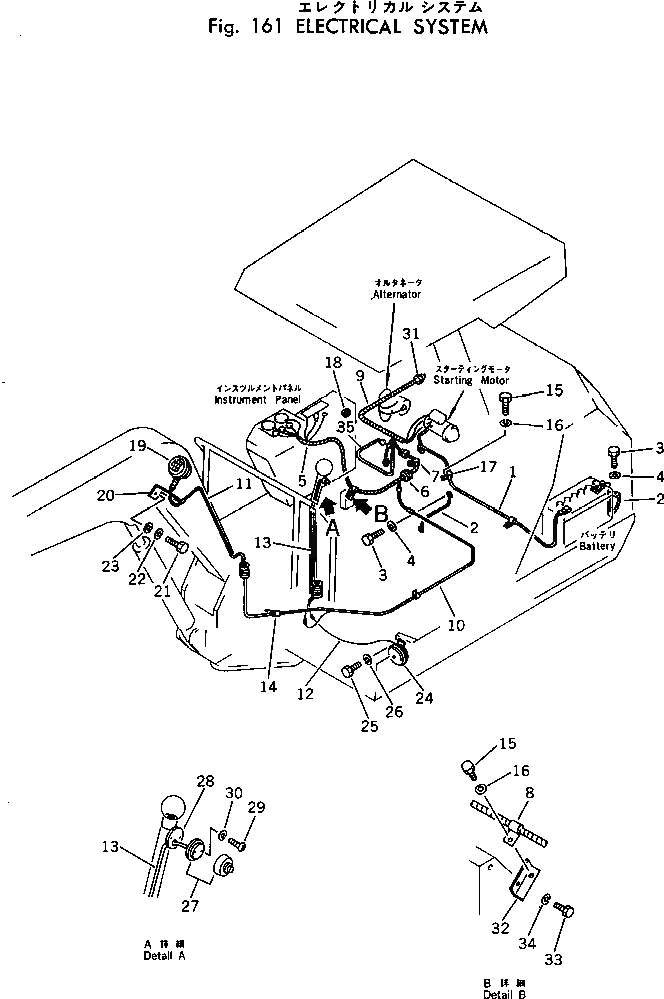

Запчасти Komatsu PC30-3 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-13220

WIRE

2

20R-06-11240

WIRE

3

01010-31016

BOLT

4

01642-21016

WASHER

5

20S-06-13130

WIRE ASS'Y

6

08037-03620

GROMMET

7

08036-01414

CLIP

8

08036-01814

CLIP

9

20S-06-13140

WIRE ASS'Y

10

20S-06-13160

WIRE ASS'Y

11

20R-06-23110

WIRE

12

20S-06-13180

WIRE

13

20S-06-13190

WIRE

14

08036-10810

CLIP

15

01010-31016

BOLT

16

01602-01030

WASHER,SPRING

17

08036-02514

CLIP

18

09415-02512

CAP

19

08125-01200

LAMP ASS'Y

|19

08107-01260

BULB¤ 60W

|19

08125-00006

LENS

20

201-06-21110

BRACKET

21

01010-31025

BOLT

22

01602-01030

WASHER,SPRING

23

01643-31032

WASHER

24

08160-41200

HORN

25

01010-30816

BOLT

26

01602-00825

WASHER,SPRING

27

20N-06-11230

SWITCH,HORN

28

20S-06-13110

SEAT

29

01220-40316

SCREW

30

01601-20307

WASHER,SPRING

31

198-06-11940

SENSOR,FUEL

32

205-06-11140

BRACKET

33

01010-31020

BOLT

34

01602-01030

WASHER,SPRING

35

20S-06-13210

WIRE
