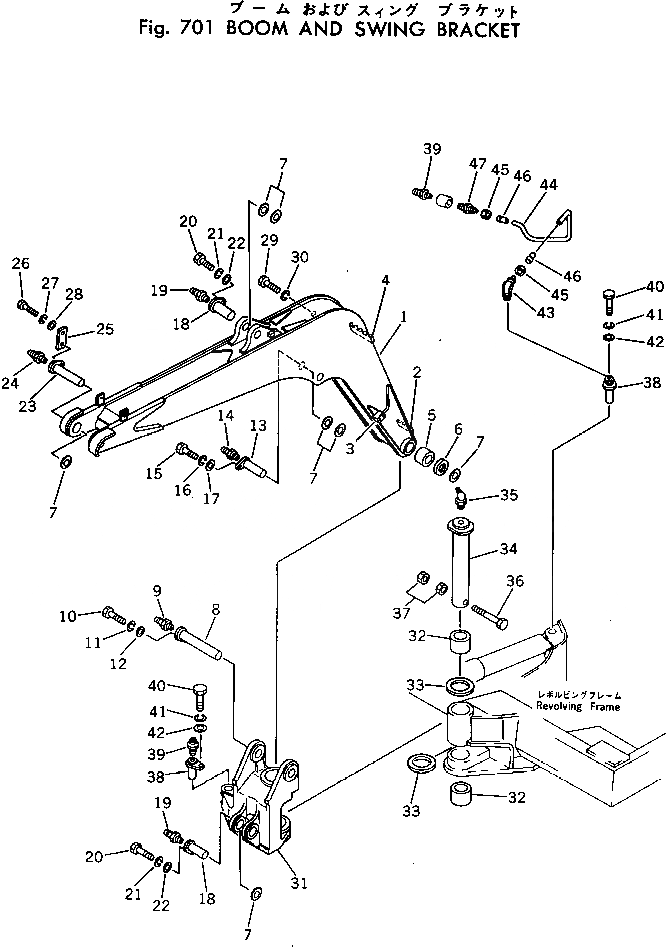

Запчасти Komatsu PC30-1 СТРЕЛА И ПОВОРОТН. БЛОК РАБОЧЕЕ ОБОРУДОВАНИЕ
№
Артикул
Название
Примечание
Количество
|$0
20S-70-00010
BOOM ASS'Y
1
BOOM
2
20R-70-12140
PLATE (WELDED)
3
20R-70-12160
PLATE (WELDED)
4
20R-70-12150
SUPPORT (WELDED)
5
20S-70-11220
BUSHING
5
07143-10404
BUSHING
6
07145-00040
SEAL,DUST
7
20R-70-11260
SPACER, 1.0MM
8
20R-70-11163
PIN
9
07020-00000
FITTING,GREASE
10
01010-31230
BOLT
11
01602-01236
WASHER,SPRING
12
01643-31232
WASHER
13
20R-70-11181
PIN
14
07020-00000
FITTING,GREASE
15
01010-31230
BOLT
16
01602-01236
WASHER,SPRING
17
01643-31232
WASHER
18
20R-70-11171
PIN
19
07020-00000
FITTING,GREASE
20
01010-31230
BOLT
21
01602-01236
WASHER,SPRING
22
01643-31232
WASHER
23
20R-70-11194
PIN
24
07000-00000
O-RING,GREASE
25
20R-70-11250
PLATE
26
01010-31230
BOLT
27
01602-01236
WASHER,SPRING
28
01643-31232
WASHER
29
01010-31230
BOLT
30
01602-01236
WASHER,SPRING
|$32
20S-70-00020
BRACKET ASS'Y,BOOM SWING
31
BRACKET,BOOM SWING
32
20S-70-11230
BUSHING
32
07143-10706
BUSHING
33
20R-70-14130
WASHER
34
20R-70-14161
PIN
35
07020-00675
FITTING,GREASE
36
01011-31650
BOLT
37
01580-01613
NUT
38
20R-70-14140
PIN
39
07020-00000
FITTING,GREASE
40
01010-31230
BOLT
41
01602-01236
WASHER,SPRING
42
01643-31232
WASHER
43
20R-46-11150
ELBOW
44
20T-70-15160
TUBE
45
07832-00410
NUT
46
07831-00411
SLEEVE
47
20R-46-11160
CONNECTOR
Выбрано товаров: 51
