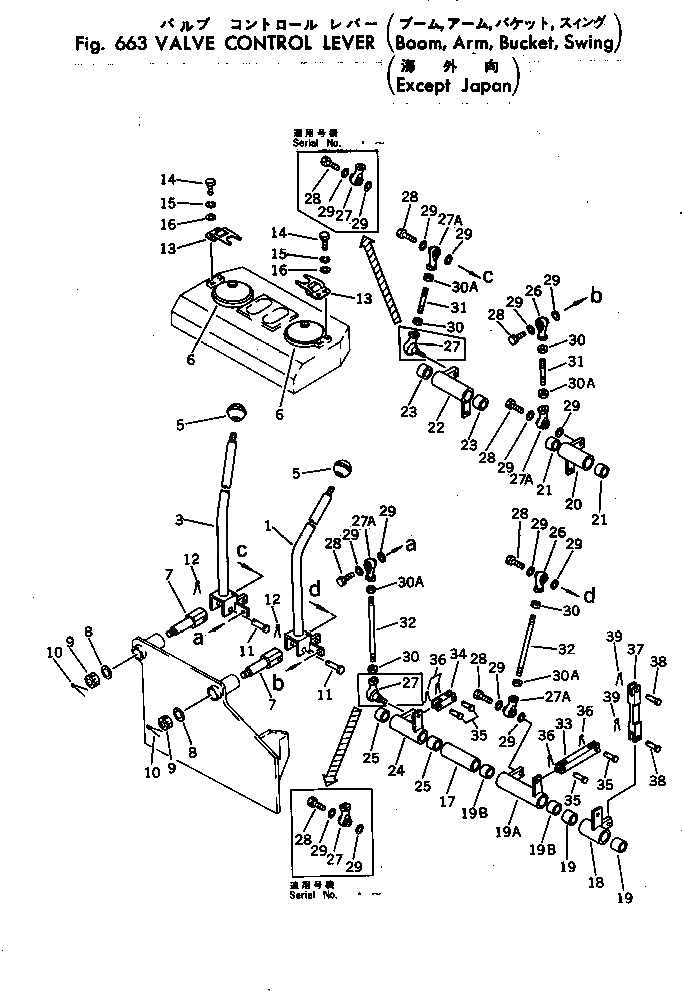

Запчасти Komatsu PC30-1 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤РУКОЯТЬ¤КОВШ¤ПОВОРОТН.)(КРОМЕ ЯПОН.) ГИДРАВЛИКА

1

20S-43-11361

LEVER

1

20S-43-11360

LEVER

1

20S-43-11250

SPACER

1

09340-10130

SPRING

3

20S-43-11461

LEVER

3

20R-43-11460

LEVER,L.H.

3

20S-43-11250

SPACER

3

09340-10130

SPRING

5

20R-43-11280

KNOB

6

20S-43-11370

COVER

7

20S-43-11380

SHAFT

8

20S-43-11390

WASHER

9

01593-11411

NUT

10

04050-13022

PIN,COTTER

11

20S-43-11410

PIN

12

04050-13020

PIN,COTTER

13

20S-43-11421

HINGE

14

01010-30820

BOLT

15

01602-00825

WASHER,SPRING

16

01643-30823

WASHER

17

20S-43-11430

COLLAR

|$21

20S-43-00200

LEVER ASS'Y

18

LEVER

19

09350-02220

BUSHING

|$24

20S-43-00340

LEVER ASS'Y

|$25

20S-43-00210

LEVER ASS'Y

19A

LEVER

19A

LEVER

19B

09350-02220

BUSHING

|$29

20S-43-00350

LEVER ASS'Y

|$30

20S-43-00220

LEVER ASS'Y

20

LEVER

20

LEVER

21

09350-02220

BUSHING

|$34

20S-43-00320

LEVER ASS'Y

|$35

20S-43-00090

LEVER ASS'Y

22

LEVER

22

LEVER

23

09350-02220

BUSHING

|$39

20S-43-00330

LEVER ASS'Y

|$40

20S-43-00100

LEVER ASS'Y

24

LEVER

24

LEVER

25

09350-02220

BUSHING

26

04250-51265

END,ROD

26

04250-51056

END,ROD

27

04250-51265

END,ROD

27

203-43-21110

JOINT,BALL

27A

04250-71265

END,ROD

27A

04250-71056

END,ROD

28

01010-31235

BOLT

28

01010-31035

BOLT

29

04254-01232

SPACER

29

04254-01032

SPACER

30

01582-11210

NUT

30

01582-11008

NUT

30A

01508-21207

NUT,L.H. THREAD

30A

01508-21006

NUT, L.H. THREAD,L.H. THREAD

31

20S-43-11471

ROD

31

20S-43-11470

ROD

32

04248-31217

ROD

32

04248-31019

ROD

33

20S-43-11340

YOKE

34

20S-43-11350

YOKE

35

04205-10622

PIN

36

04050-11610

PIN,COTTER

37

20S-43-11540

YOKE

38

04205-10622

PIN

39

04050-11610

PIN,COTTER
