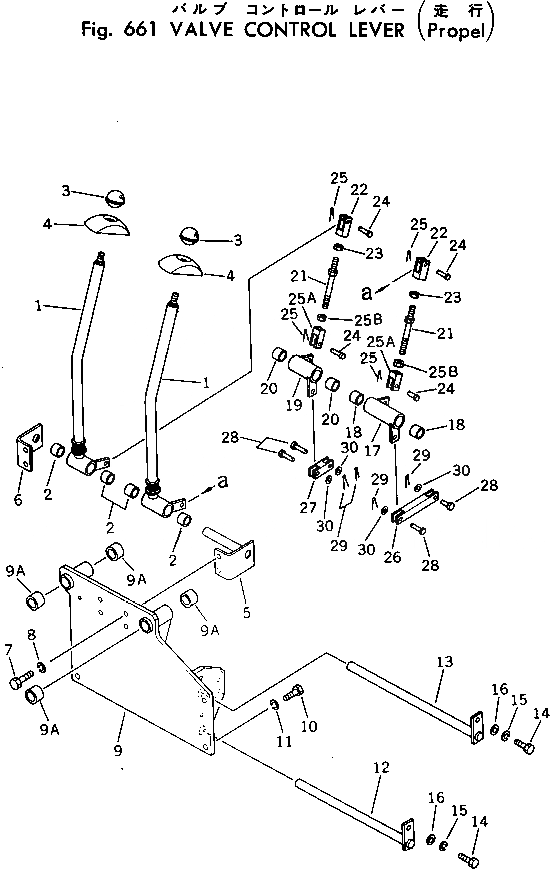

Запчасти Komatsu PC30-1 КЛАПАН РЫЧАГ УПРАВЛ-Я (ХОД) ГИДРАВЛИКА

|$0

20S-43-00010

LEVER ASS'Y,L.H.

|$1

20S-43-00020

LEVER ASS'Y,R.H.

1

LEVER,L.H.

1

LEVER,R.H.

2

09350-02220

BUSHING

3

20R-43-11280

KNOB

4

20S-43-11230

COVER

5

20S-43-11260

SHAFT

6

20S-43-11270

BRACKET

7

01010-31030

BOLT

8

01602-01030

WASHER,SPRING

|$11

20S-43-00130

BRACKET ASS'Y

9

BRACKET

9A

09350-02225

BUSHING

10

01010-31030

BOLT

11

01602-01030

WASHER,SPRING

12

20S-43-11290

SHAFT

13

20S-43-11310

SHAFT

14

01010-31025

BOLT

15

01602-01030

WASHER,SPRING

16

01643-31032

WASHER

|$21

20S-43-00030

LEVER ASS'Y

17

LEVER

18

09350-02220

BUSHING

|$24

20S-43-00040

LEVER ASS'Y

19

LEVER

20

09350-02220

BUSHING

21

04248-30811

ROD

22

04210-20832

YOKE

23

01580-10806

NUT

24

04205-10822

PIN

25

04050-12012

PIN,COTTER

25A

04220-20832

YOKE,L.H. THREAD

25B

01508-20805

NUT,L.H. THREAD

26

20S-43-11340

YOKE

27

20S-43-11350

YOKE

28

04205-10622

PIN

29

04050-11610

PIN,COTTER

30

01641-20608

WASHER
