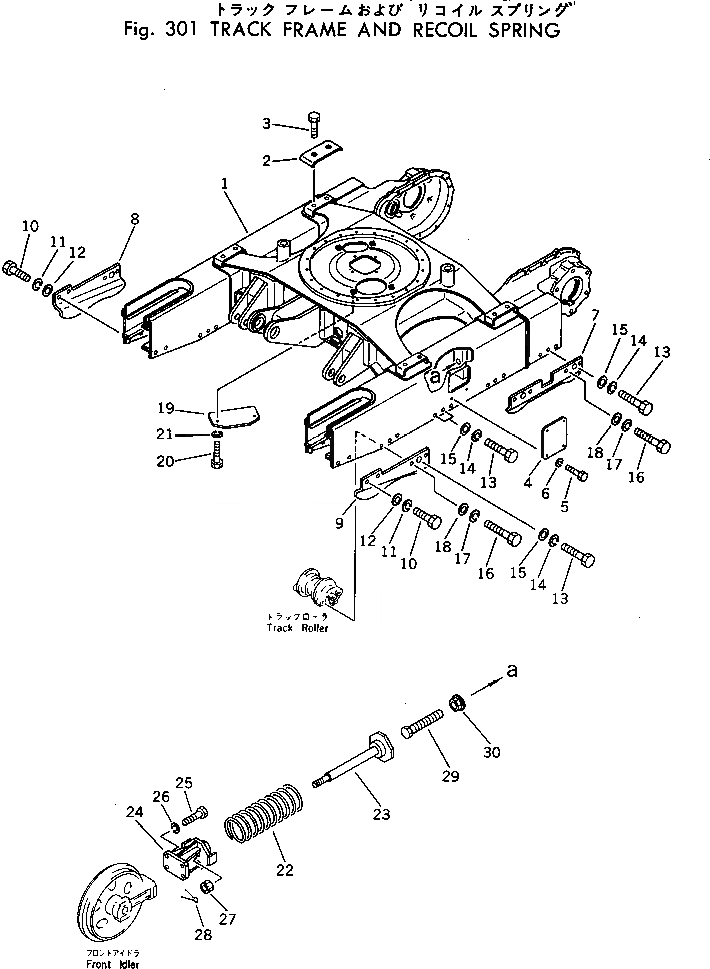

Запчасти Komatsu PC30-1 ГУСЕНИЧНАЯ РАМА И ПРУЖИНА ХОДОВАЯ

1

20S-30-11102

TRACK FRAME ASS'Y

2

20R-30-11190

PLATE

3

01010-31225

BOLT

4

20S-30-11220

COVER

5

01010-31016

BOLT

6

01602-01030

WASHER,SPRING

7

20S-30-11190

GUARD,REAR

8

20R-30-11321

GUARD,INNER, L.H. AND OUTER, R.H.

9

20R-30-11331

GUARD,OUTER, L.H. AND INNER, R.H.

10

01010-31435

BOLT

11

01602-01442

WASHER,SPRING

12

01643-21432

WASHER

13

01010-31435

BOLT

14

01602-01442

WASHER,SPRING

15

01643-31445

WASHER

16

01010-31445

BOLT

17

01602-01442

WASHER,SPRING

18

01643-31445

WASHER

19

20S-30-11210

COVER

20

01010-31225

BOLT

21

01602-01236

WASHER,SPRING

22

20T-30-12210

SPRING,RECOIL

23

20S-30-12110

ROD

24

20T-30-12110

BRACKET,IDLER

25

01010-31230

BOLT

26

01602-01236

WASHER,SPRING

27

01590-12226

NUT

28

04050-15040

PIN,COTTER

29

10E-30-13141

BOLT

30

10E-30-13150

NUT
