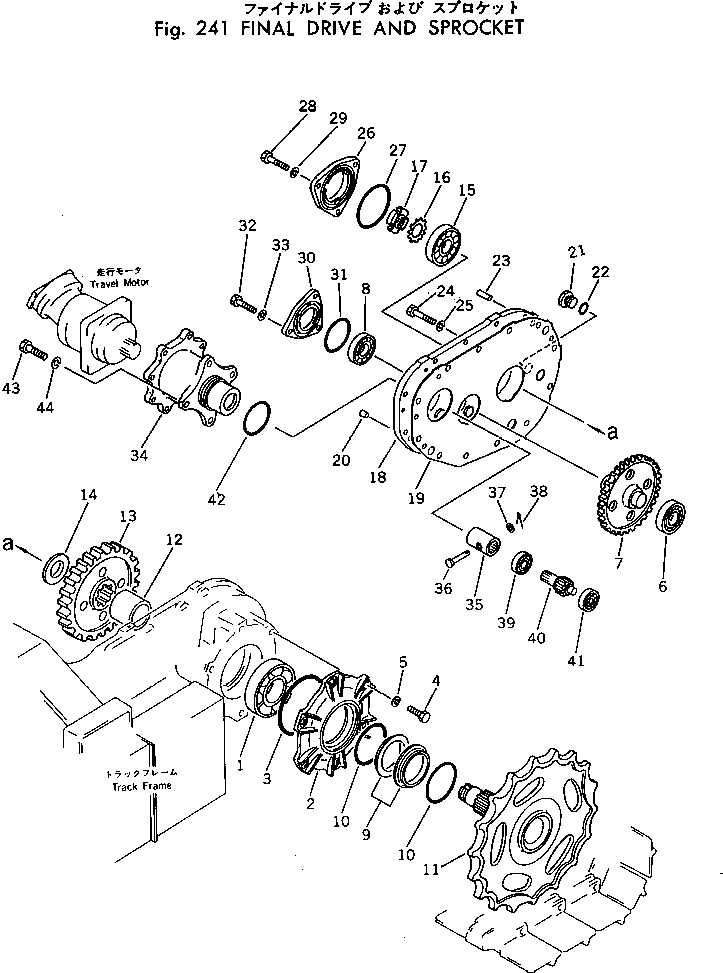

Запчасти Komatsu PC30-1 КОНЕЧНАЯ ПЕРЕДАЧА И ЗВЕЗДОЧКА ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

1

06040-06312

BEARING

2

20R-27-11460

COVER

3

07000-02145

O-RING

4

01010-31230

BOLT

5

01602-01236

WASHER,SPRING

6

06044-00207

BEARING,ROLLER

7

20R-27-11630

SHAFT,GEAR

8

12R-09-15110

BEARING

|$8

170-30-00111

FLOATING SEAL ASS'Y

9

170-30-00180

SEAL RING ASS'Y

9

RING,SEAL

10

175-30-00580

O-RING ASS'Y

10

O-RING

11

20S-27-11110

SPROCKET

12

20R-27-11440

COLLAR

13

20R-27-11730

GEAR

14

10E-27-12150

COLLAR

15

06044-00308

BEARING

16

01658-03923

WASHER

17

01530-03912

NUT,LOCK

18

20R-27-11160

GASKET

|$21

20R-27-00010

COVER ASS'Y,L.H.

|$22

20R-27-00020

COVER ASS'Y,R.H.

19

COVER,L.H.

19

COVER,R.H.

20

07049-01215

PLUG

21

07040-12414

PLUG

22

07002-02434

O-RING

23

04020-01638

PIN,DOWEL

24

01010-31240

BOLT

25

01602-01236

WASHER,SPRING

26

20R-27-11451

COVER

27

07000-02105

O-RING

28

01010-31230

BOLT

29

01602-01236

WASHER,SPRING

30

20R-27-11342

COVER

31

07000-02085

O-RING

32

01010-31230

BOLT

33

01602-01236

WASHER,SPRING

34

20T-26-11230

CAGE

35

20T-26-11210

COUPLING

36

20T-26-11220

PIN

37

01641-20608

WASHER

38

04050-01610

PIN,COTTER

39

06044-00205

BEARING

40

20R-27-11510

SHAFT,PINION

41

06043-00204

BEARING

42

07000-02075

O-RING

43

01010-31230

BOLT

44

01602-01236

WASHER,SPRING
