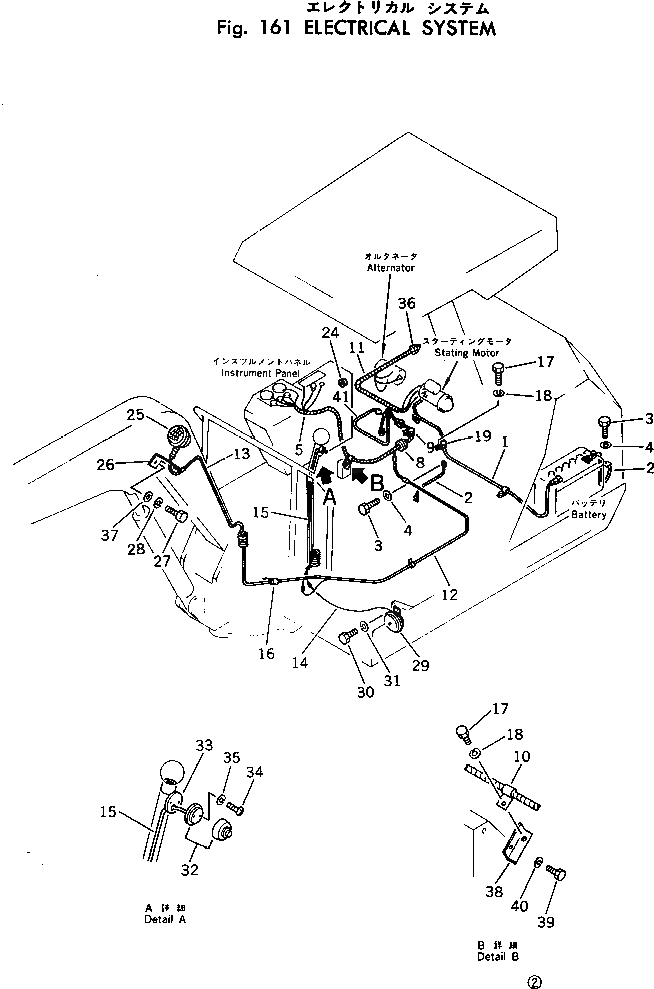

Запчасти Komatsu PC30-1 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-13121

WIRE

2

20R-06-11240

WIRE

3

01010-31016

BOLT

4

01642-21016

WASHER

5

20S-06-13130

WIRE ASS'Y

8

08037-03620

GROMMET

9

08036-01414

CLIP

10

08036-01814

CLIP

11

20S-06-13140

WIRE ASS'Y

12

20S-06-13160

WIRE ASS'Y

13

20R-06-23110

WIRE

14

20S-06-13180

WIRE

15

20S-06-13190

WIRE

16

08036-10810

CLIP

17

01010-31016

BOLT

18

01602-01030

WASHER,SPRING

19

08036-02514

CLIP

24

09415-02512

CAP

25

08125-01200

LAMP ASS'Y,FRONT WORK

25

08107-01260

BULB, 60W

25

08125-00006

LENS

26

201-06-21110

BRACKET

27

01010-31025

BOLT

28

01602-01030

WASHER,SPRING

29

08160-41200

HORN

30

01010-30816

BOLT

31

01602-00825

WASHER,SPRING

32

20N-06-11230

SWITCH,HORN

33

20S-06-13110

SEAT

34

01220-40316

SCREW

35

01601-20307

WASHER,SPRING

36

198-06-11940

SENSOR,FUEL

37

01643-31032

WASHER

38

20S-06-11140

BRACKET

39

01010-31020

BOLT

40

01602-01030

WASHER,SPRING

41

20S-06-13210

WIRE
