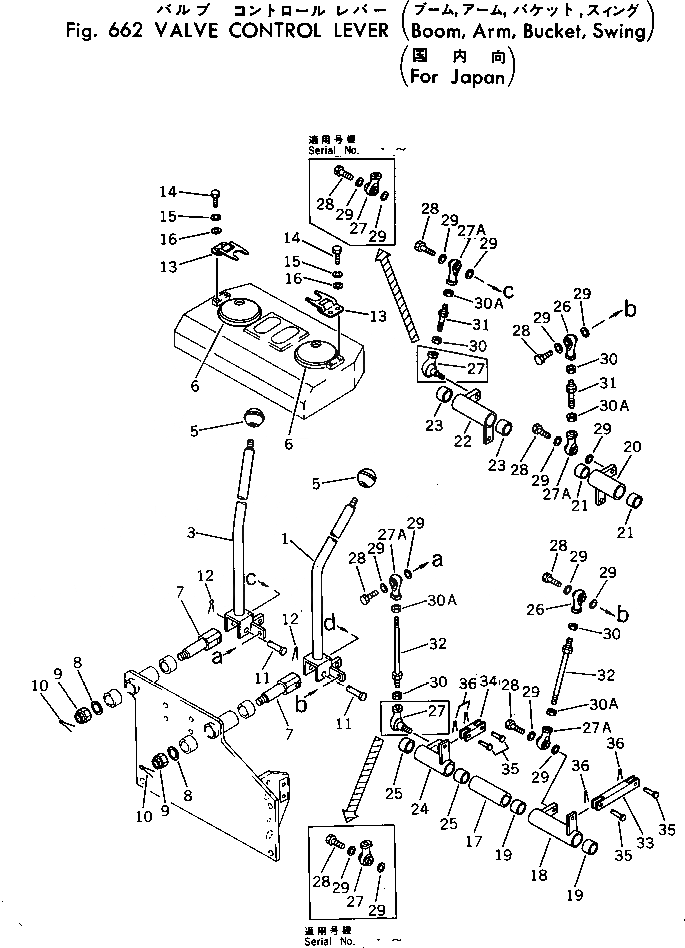

Запчасти Komatsu PC30-1 КЛАПАН РЫЧАГ УПРАВЛ-Я (СТРЕЛА¤РУКОЯТЬ¤КОВШ¤ПОВОРОТН.)(ДЛЯ ЯПОН.) ГИДРАВЛИКА

1

20S-43-11361

LEVER

|1

20S-43-11360

LEVER

|1

20S-43-11250

SPACER

|1

09340-10130

SPRING

3

20S-43-11461

LEVER

|3

20S-43-11460

LEVER

|3

20S-43-11250

SPACER

|3

09340-10130

SPRING

5

20R-43-11280

KNOB

6

20S-43-11370

COVER

7

20S-43-11380

SHAFT

8

20S-43-11390

WASHER

9

01593-11411

NUT

10

04050-13022

PIN,COTTER

11

20S-43-11410

PIN

12

04050-13020

PIN,COTTER

13

20S-43-11421

HINGE

14

01010-30820

BOLT

15

01602-00825

WASHER,SPRING

16

01643-30823

WASHER

17

20S-43-11430

COLLAR

|18

20S-43-00300

LEVER ASS'Y

|18

20S-43-00070

LEVER ASS'Y

18

LEVER

|18

LEVER

19

09350-02220

BUSHING

|20

20S-43-00310

LEVER ASS'Y

|20

20S-43-00080

LEVER ASS'Y

20

LEVER

|20

LEVER

21

09350-02220

BUSHING

|22

20S-43-00320

LEVER ASS'Y

|22

20S-43-00090

LEVER ASS'Y

22

20S-43-11481

LEVER

|22

LEVER

23

09350-02220

BUSHING

|24

20S-43-00330

LEVER ASS'Y

|24

20S-43-00100

LEVER ASS'Y

24

LEVER

|24

LEVER

25

09350-02220

BUSHING

26

04250-51265

END,ROD

|26

04250-51056

END,ROD

27

04250-51265

END,ROD

|27

203-43-21110

JOINT,BALL

27A

04250-71265

END,ROD

|27A

04250-71056

END,ROD

28

01010-31235

BOLT

|28

01010-31035

BOLT

29

04254-01232

SPACER

|29

04254-01032

SPACER

30

01582-11210

NUT

|30

01582-11008

NUT

30A

01508-21207

NUT,L.H. THREAD

|30A

01508-21006

NUT¤ L.H. THREAD,L.H. THREAD

31

20S-43-11471

ROD

|31

20S-43-11470

ROD

32

04248-31217

ROD

|32

04248-31019

ROD

33

20S-43-11340

YOKE

34

20S-43-11350

YOKE

35

04205-10622

PIN

36

04050-11610

PIN,COTTER
