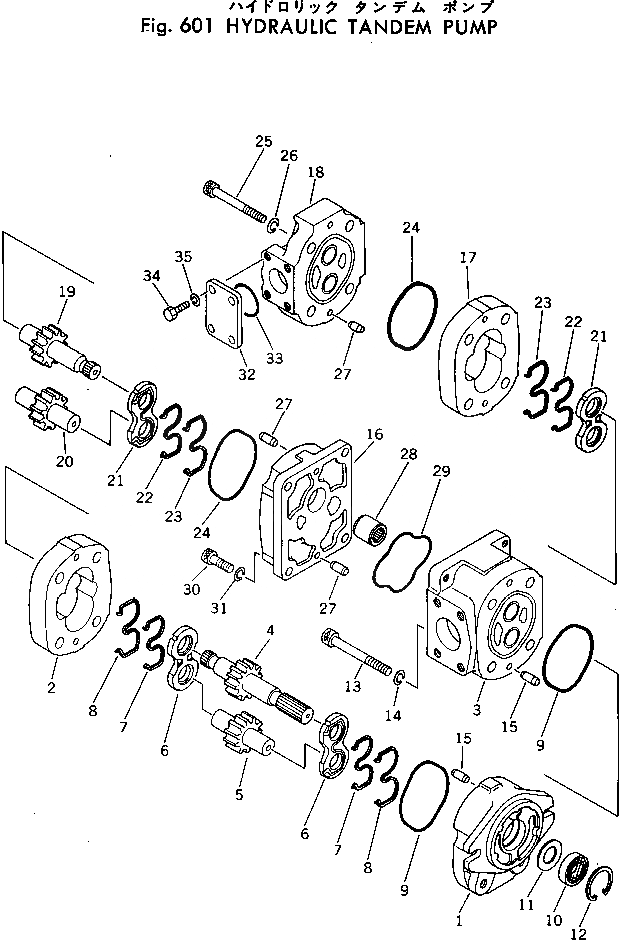

Запчасти Komatsu PC30-1 ГИДРАВЛ СДВОЕНН. НАСОС ГИДРАВЛИКА

|1

705-52-10070

TANDEM PUMP ASS'Y

|1

705-12-22230

PUMP ASS'Y

1

705-17-01020

BRACKET ASS'Y

2

705-17-22011

CASE,GEAR

3

705-17-01220

CARRIER ASS'Y

4

705-17-22440

GEAR,DRIVE

5

705-17-22511

GEAR,DRIVEN

6

705-17-01610

PLATE,SIDE

7

705-17-01440

RING,BACK-UP

8

705-17-01470

SEAL

9

705-17-01381

O-RING

10

704-17-01810

SEAL,OIL

11

705-17-01870

PLATE

12

04065-03515

RING,SNAP

13

705-17-02750

BOLT

14

01602-21236

WASHER,SPRING

15

04020-00820

PIN,DOWEL

|16

705-12-22530

PUMP ASS'Y

16

705-17-01520

BRACKET ASS'Y

17

705-17-22011

CASE,GEAR

18

705-17-01120

COVER

19

705-17-22451

GEAR,DRIVE

20

705-17-22511

GEAR,DRIVEN

21

705-17-01610

PLATE,SIDE

22

705-17-01440

RING,BACK-UP

23

705-17-01470

SEAL

24

705-17-01381

O-RING

25

705-17-02730

BOLT

26

01602-21236

WASHER,SPRING

27

04020-00820

PIN,DOWEL

28

705-17-01330

COUPLING ASS'Y

29

705-17-01480

O-RING

30

705-17-02374

BOLT

31

01602-21030

WASHER,SPRING

32

705-17-01880

PLATE

33

07000-03032

O-RING

34

01010-51025

BOLT

35

01602-21030

WASHER,SPRING
