Запчасти Komatsu PC30-1 КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

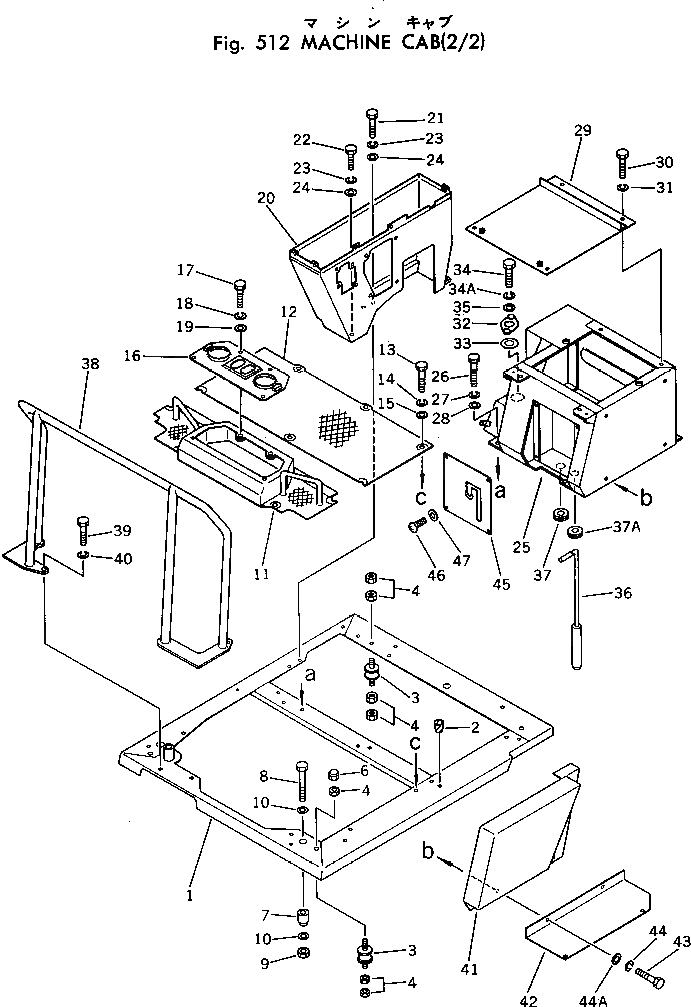

Схема запчастей Komatsu PC30-1 - КАБИНА (/) ОСНОВНАЯ РАМА И КАБИНА

Артикул

Название

Примечание

Количество

1

20S-54-12110

FRAME

2

07049-01012

PLUG,(FOR CANOPY)

3

20R-01-12111

CUSHION

4

01580-12110

NUT

6

20T-54-26130

NUT

7

20T-54-11510

BOSS

8

01010-31680

BOLT

9

01580-11613

NUT

10

01643-21645

WASHER

11

20S-54-12130

FLOOR

12

20S-54-12140

FLOOR

13

01010-31025

BOLT

14

01602-01030

WASHER,SPRING

15

01643-31032

WASHER

16

20S-54-12150

COVER

17

01010-31025

BOLT

18

01602-01030

WASHER,SPRING

19

01643-31032

WASHER

20

20S-54-12160

BOX,PANEL

21

01010-31035

BOLT

22

01010-31025

BOLT

23

01602-01030

WASHER,SPRING

24

01643-31032

WASHER

25

20S-54-12171

BOX

26

01010-31025

BOLT

27

01602-01030

WASHER,SPRING

28

01643-31032

WASHER

29

20S-54-12180

COVER

30

01010-31225

BOLT

31

01602-01236

WASHER,SPRING

32

20S-54-12190

PLATE

33

20S-54-12210

SHEET

34

01010-30620

BOLT

34A

01602-20619

WASHER,SPRING

35

01643-30623

WASHER

36

20S-54-12220

PIN

37

09415-01610

CAP

37A

08037-01610

GROMMET

38

20S-54-12410

HANDRAIL,(FOR CANOPY)

|38

20S-54-12270

HANDRAIL,(FOR CANOPY)

39

01010-31025

BOLT,(FOR CANOPY)

40

01602-01030

WASHER,SPRING (FOR CANOPY)

41

20S-54-12280

COVER

42

20S-54-12290

COVER

43

01010-31025

BOLT

44

01602-01030

WASHER,SPRING

44A

01643-31032

WASHER

45

20S-54-12320

PLATE

46

01220-40616

SCREW

47

01602-00619

WASHER,SPRING

Выбрано товаров: 50
