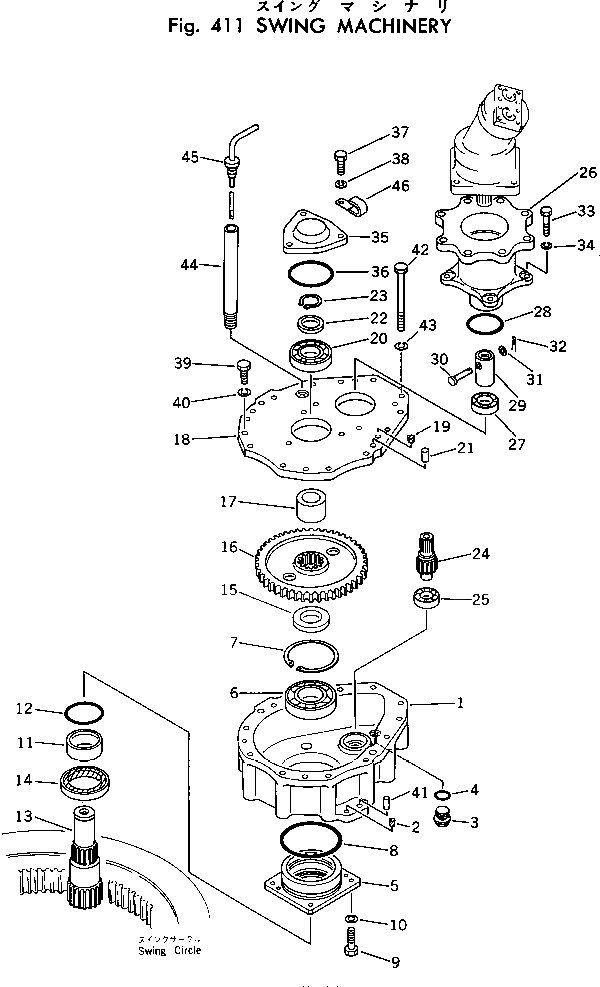

Запчасти Komatsu PC30-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

20R-26-00010

CASE ASS'Y

1

CASE

2

07049-01215

PLUG

3

07044-12412

PLUG

4

07002-02434

O-RING

5

20R-26-11370

CAGE

6

06030-22211

BEARING,ROLLER

7

04065-01030

RING,SNAP

8

07000-02120

O-RING

9

01010-31230

BOLT

10

01650-01212

WASHER,LOCK

11

20R-26-11330

COLLAR

12

07000-02055

O-RING

13

20S-26-11110

SHAFT,PINION

14

07012-00070

SEAL,OIL

15

20R-26-11340

COLLAR

16

20S-26-11120

GEAR

17

20R-26-11350

COLLAR

|18

20R-26-00020

COVER ASS'Y

18

COVER

19

07049-01215

PLUG

20

06044-00208

BEARING,ROLLER

21

04020-01434

PIN,DOWEL

22

20R-26-11360

COLLAR

23

04064-04018

RING,SNAP

24

20S-26-11130

SHAFT,PINION

25

06040-06204

BEARING,BALL

26

20T-26-11230

CAGE

27

06044-00205

BEARING,ROLLER

28

07000-02075

O-RING

29

20T-26-11210

COUPLING

30

20T-26-11220

PIN

31

01641-20608

WASHER

32

04050-01610

PIN,COTTER

33

01010-31230

BOLT

34

01602-01236

WASHER,SPRING

35

20R-26-11380

COVER

36

07000-02095

O-RING

37

01010-31230

BOLT

38

01602-01236

WASHER,SPRING

39

01010-31040

BOLT

40

01602-01030

WASHER,SPRING

41

04020-01434

PIN,DOWEL

42

01011-31250

BOLT

43

01602-01236

WASHER,SPRING

44

20R-26-11141

FILLER

45

20R-26-11131

GAUGE,OIL LEVEL

46

08036-11214

CLIP
