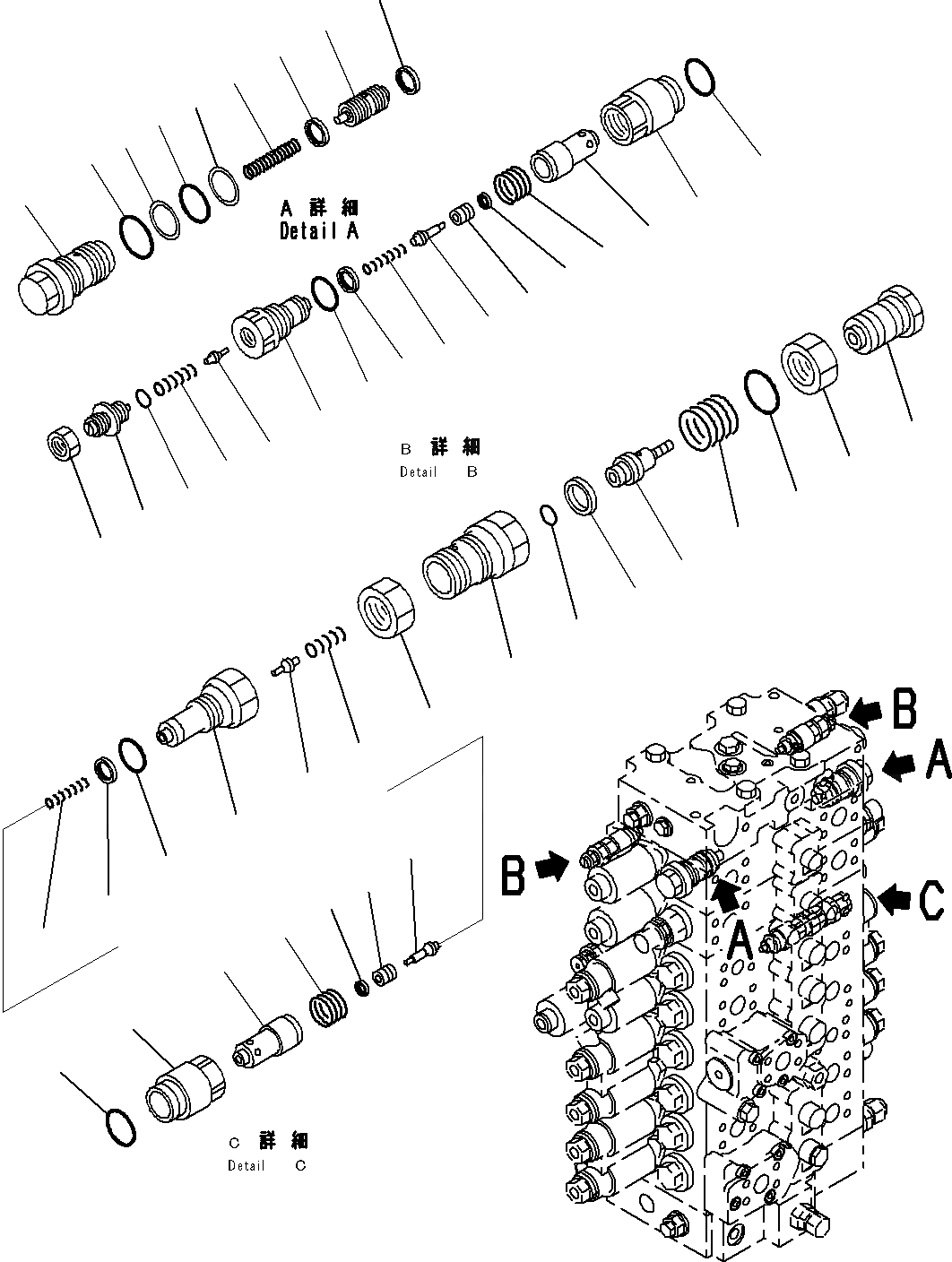

Запчасти Komatsu PC290NLC-8K ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН, ДЛЯ MACHINE С -ДОПОЛН. АКТУАТОР КОНТУР (/) H ГИДРАВЛИКА

|1

723-46-40100

Valve Assembly

1

723-46-41310

Sleeve

2

723-46-41610

Piston Subassembly

3

723-46-41920

Spring

4

723-46-41940

Seal

5

700-93-11320

O-Ring

6

723-46-41950

Ring

7

07002-13634

O-Ring

|7

709-70-74302

Valve Assembly, Suction

8

709-70-71112

Sleeve

9

709-70-71121

Sleeve

10

709-70-71630

Poppet

11

709-70-71640

Piston

12

709-70-71152

Plug

13

709-70-71162

Poppet

14

709-70-71173

Screw

15

709-70-71210

Spring

16

709-70-71220

Spring

17

709-70-71231

Spring

18

709-70-71610

Seal

19

700-20-71260

Seal

20

709-25-11390

O-Ring

21

07002-12434

O-Ring

22

07000-12011

O-Ring

23

01583-11408

Nut

|23

723-40-90100

Valve Assembly

24

709-70-71112

Sleeve

25

709-70-71121

Sleeve

26

709-70-71630

Poppet

27

709-70-71640

Piston

28

723-40-91110

Sleeve

29

709-70-71162

Poppet

30

723-40-91140

Union

31

723-40-91130

Piston

32

709-70-71210

Spring

33

709-70-71220

Spring

34

709-10-62120

Spring

35

709-70-71610

Seal

36

700-20-71260

Seal

37

709-25-11390

O-Ring

38

07002-02434

O-Ring

39

723-40-91160

Nut

40

723-40-91170

Nut

41

723-40-91120

Holder

42

07002-03034

O-Ring

43

723-40-91150

Spring

44

700-80-62350

Seal
