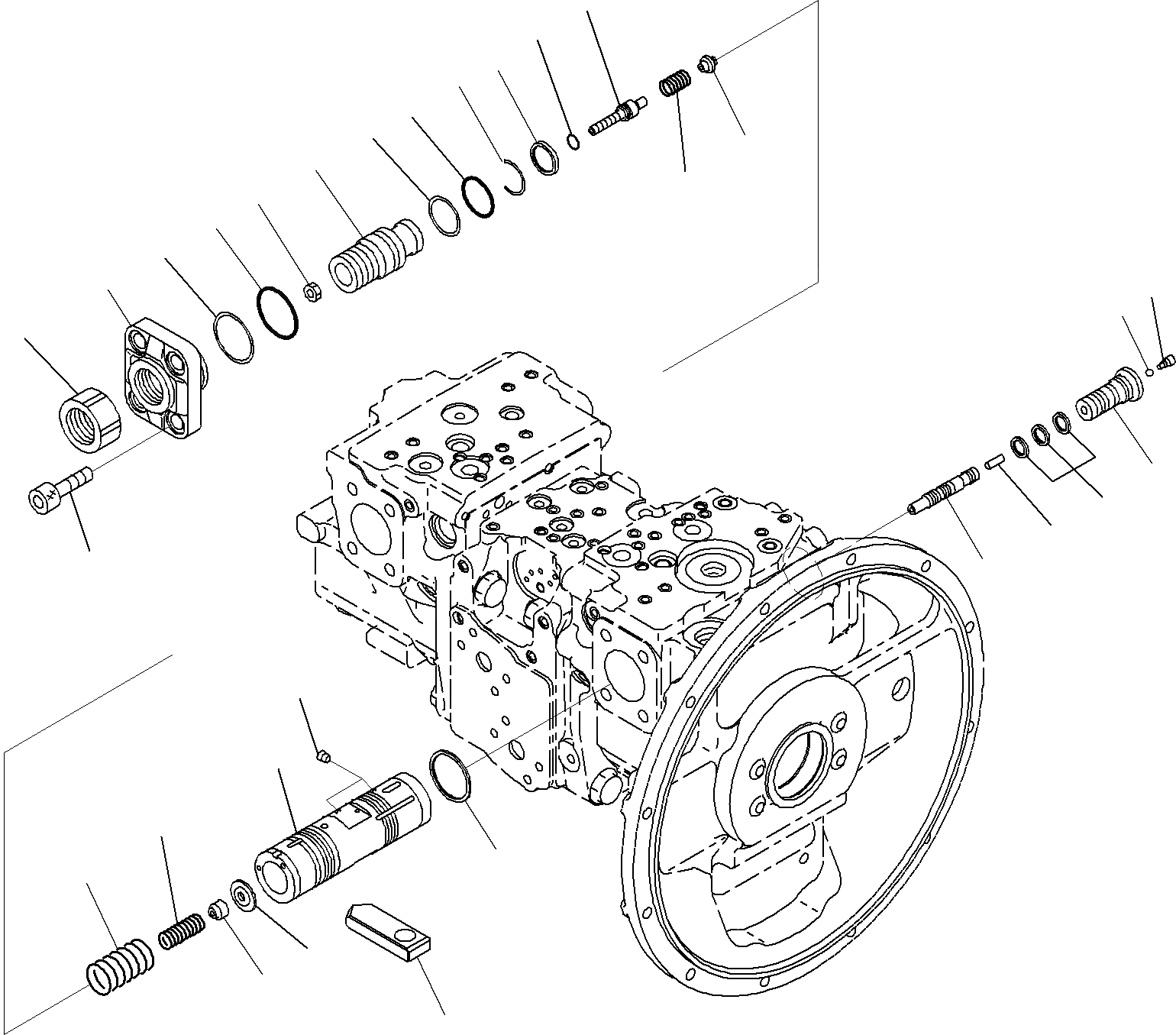

Запчасти Komatsu PC290NLC-8K ОСНОВН. НАСОС (/) Y FIELD REPВОЗД. ЗАПЧАСТИ ДЛЯ ОБСЛУЖ-Я

|1

708-2L-00790

Pump Assembly

|1

708-2L-00600

Pump Assembly

|1

708-2L-01600

Pump Sub-Assembly

1

708-2L-34180

Slider

|2

708-2L-06680

Valve Assembly

|2

708-2L-06660

Piston, Assembly

2

Piston, Servo

3

Screw

4

708-2L-35680

Seal

5

708-2L-35260

Plug

6

708-2L-35760

Ball

7

708-2L-35770

Plug

8

708-2L-35690

Seal

9

708-2L-35280

Pin

10

708-2L-35860

Spool

11

708-2L-35630

Retainer

12

708-2L-35641

Seat

13

708-2L-35240

Spring

14

708-2L-35730

Spring

15

708-2L-35650

Seat

16

708-2L-35250

Spring

17

708-2L-34330

Screw

18

07000-B3034

O-Ring

19

708-2L-35210

Ring

20

708-2L-35710

Seal

21

708-2L-35270

Plug

22

07000-B2011

O-Ring

23

07000-B3045

O-Ring

24

708-2L-35750

Ring

25

708-2L-34310

Cover

26

01580-10806

Nut

27

708-2L-35290

Nut

28

708-2L-35670

Ring, Wire

29

01252-61440

Bolt
