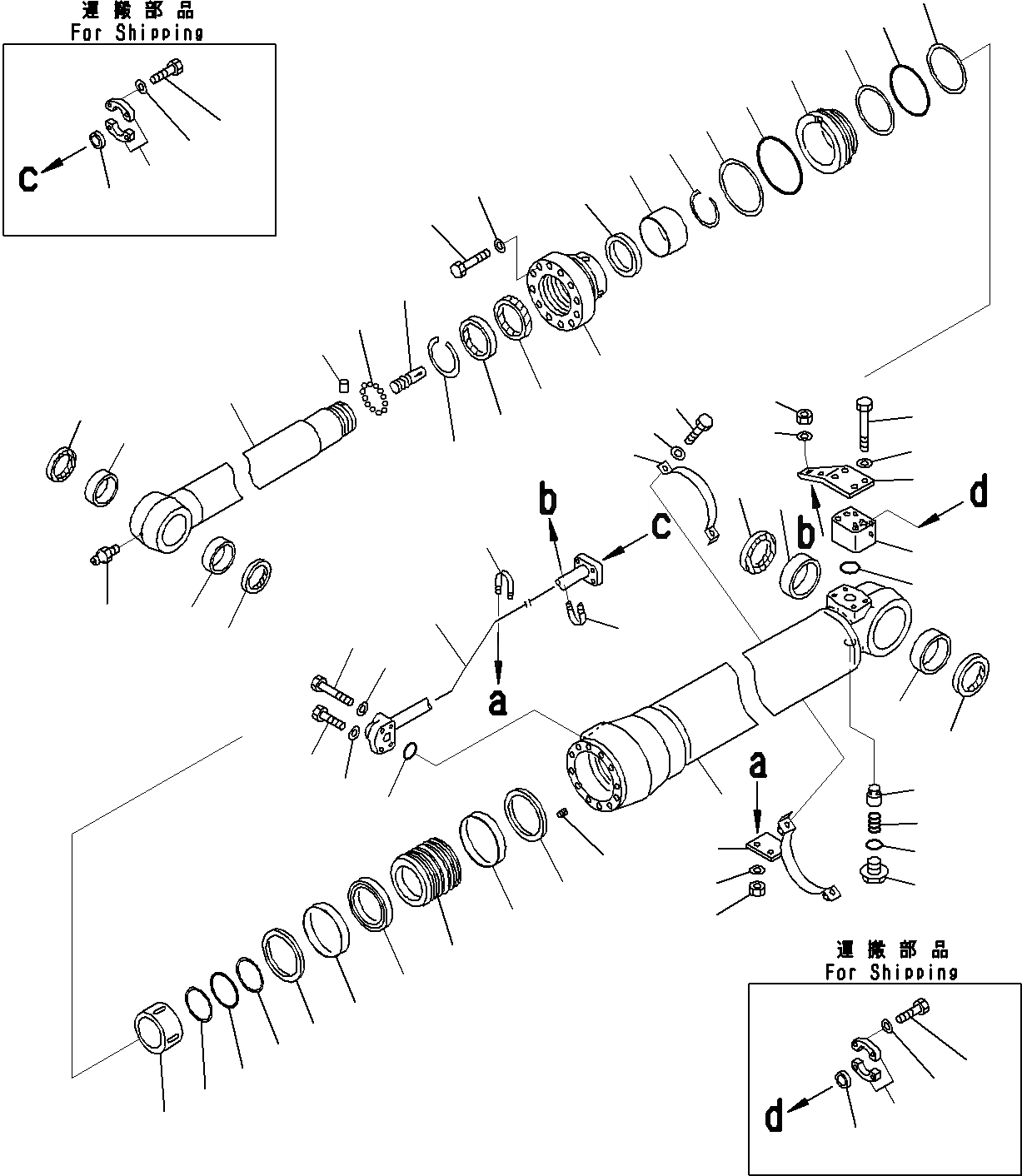

Запчасти Komatsu PC290NLC-8K ЦИЛИНДР РУКОЯТИ T РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-XS910

Cylinder Group

|1

707-01-0H950

Cylinder Assembly

1

707-13-15280

Cylinder

2

707-76-10290

Bushing

3

07145-00100

Seal, Dust, (Kit : C03)

4

707-58-11740

Rod, Piston

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : C03)

7

707-27-15650

Cylinder Head

8

07179-13126

Ring, Snap

9

198-63-94170

Seal, Dust, (Kit : C03)

10

707-52-90850

Bushing

11

707-75-11040

Ring, Snap

12

707-51-11030

Packing, (Kit : C03)

13

07000-15140

O-Ring, (Kit : C03)

14

707-35-91660

Ring, Back-Up, (Kit : C03)

15

707-51-11650

Ring, (Kit : C03)

16

01010-82085

Bolt

17

707-88-75310

Washer

18

707-36-15260

Piston

19

707-44-15150

Ring, Piston, (Kit : C03)

20

707-39-15110

Ring, Wear, (Kit : C03)

21

707-44-15911

Ring

22

707-71-61150

Plunger

23

07000-15100

O-Ring, (Kit : C03)

24

07001-05100

Ring, Back-Up, (Kit : C03)

25

01310-01216

Screw

26

707-71-80280

Plunger

27

07020-00000

Fitting, Grease

28

707-71-35030

Collar

29

707-35-91660

Ring, Back-Up, (Kit : C03)

30

07000-15140

O-Ring, (Kit : C03)

31

04260-00635

Ball

32

707-71-91270

Cap

33

707-83-13010

Valve

34

07750-01628

Spring

35

707-87-14070

Plug

36

07002-12034

O-Ring, (Kit : C03)

37

707-86-67920

Tube

38

20D-62-17860

Elbow

39

07372-51060

Bolt

40

01643-51032

Washer

41

07372-51045

Bolt

42

01643-51032

Washer

43

07000-13030

O-Ring, (Kit : C03)

44

01010-81080

Bolt

45

01643-31032

Washer

46

07000-13035

O-Ring, (Kit : C03)

47

707-88-22670

Bracket

48

707-88-21351

Band

49

07372-21035

Bolt

50

01643-51032

Washer

51

707-88-36130

Plate

52

07283-32738

Clip, Pipe

53

01597-01009

Nut

54

01643-31032

Washer

55

707-88-33030

Cap

56

07371-30640

Flange, Split

57

707-88-33040

Cap

58

07371-31049

Flange, Split

59

07372-21035

Bolt

60

01643-51032

Washer
