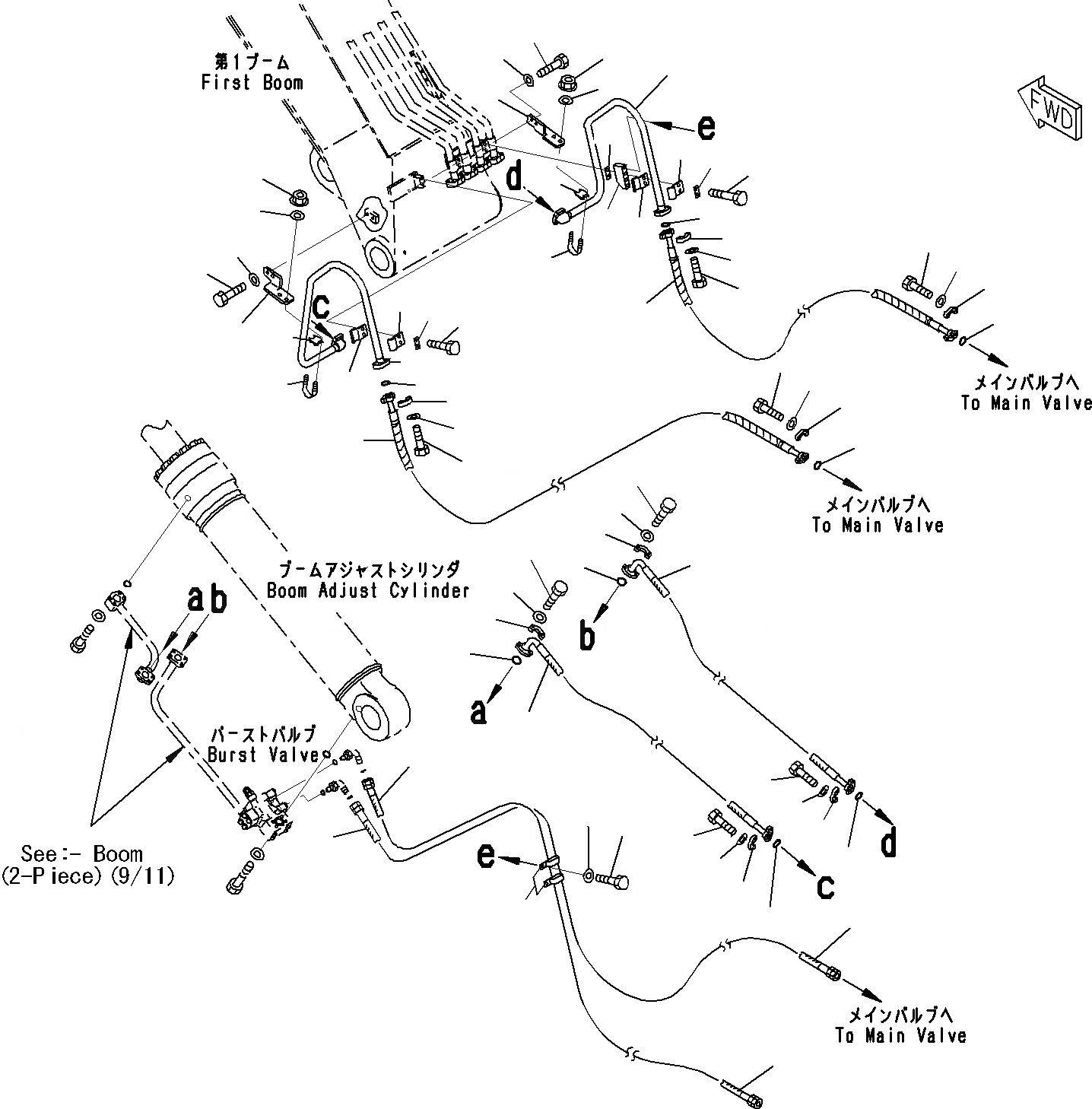

Запчасти Komatsu PC290NLC-8K СТРЕЛА (-ЧАСТИ) (/) T РАБОЧЕЕ ОБОРУДОВАНИЕ
25
10
30
41
31
28
42
29
44
43
47
46
41
40
42
24
45
43
22
13
23
12
39
27
21
26
48
50
49
20
19
40
11
4
5
48
6
39
3
7
9
1
2
8
35
36
34
17
32
33
18
16
15
14
38
35
36
53
52
34
17
37
33
18
16
51
37
15
38
1
206-62-K2460
Hose
2
07000-13032
O-Ring
3
07371-31049
Flange, Split
4
07372-21035
Bolt
5
01643-51032
Washer
6
07000-13025
O-Ring
7
07371-30640
Flange, Split
8
07372-21035
Bolt
9
01643-51032
Washer
10
206-62-K2410
Tube
11
206-62-K2480
Bracket
12
01010-81255
Bolt
13
01643-31232
Washer
14
07084-01015
Hose
15
07000-13032
O-Ring
16
07371-31049
Flange, Split
17
07372-21035
Bolt
18
01643-51032
Washer
19
206-62-K2470
Hose
20
07000-13032
O-Ring
21
07371-31049
Flange, Split
22
07372-21035
Bolt
23
01643-51032
Washer
24
07000-13025
O-Ring
25
07371-30640
Flange, Split
26
07372-21035
Bolt
27
01643-51032
Washer
28
206-62-K2420
Tube
29
206-62-K2490
Bracket
30
01010-81255
Bolt
31
01643-31232
Washer
32
07084-01015
Hose
33
07000-13032
O-Ring
34
07371-31049
Flange, Split
35
07372-21035
Bolt
36
01643-51032
Washer
37
02765-00329
Hose
38
02765-00337
Hose
39
07283-32746
Clip
40
07283-52737
Seat
41
01597-01009
Nut
42
01643-31032
Washer
43
20Y-62-13650
Clamp
44
20Y-62-13450
Plate
45
206-966-K430
Bracket
46
01010-81290
Bolt
47
20Y-62-13450
Plate
48
20Y-62-13650
Clamp
49
01010-81220
Bolt
50
20Y-62-13450
Plate
51
04435-51912
Clip
52
01010-81230
Bolt
53
01643-31232
Washer
