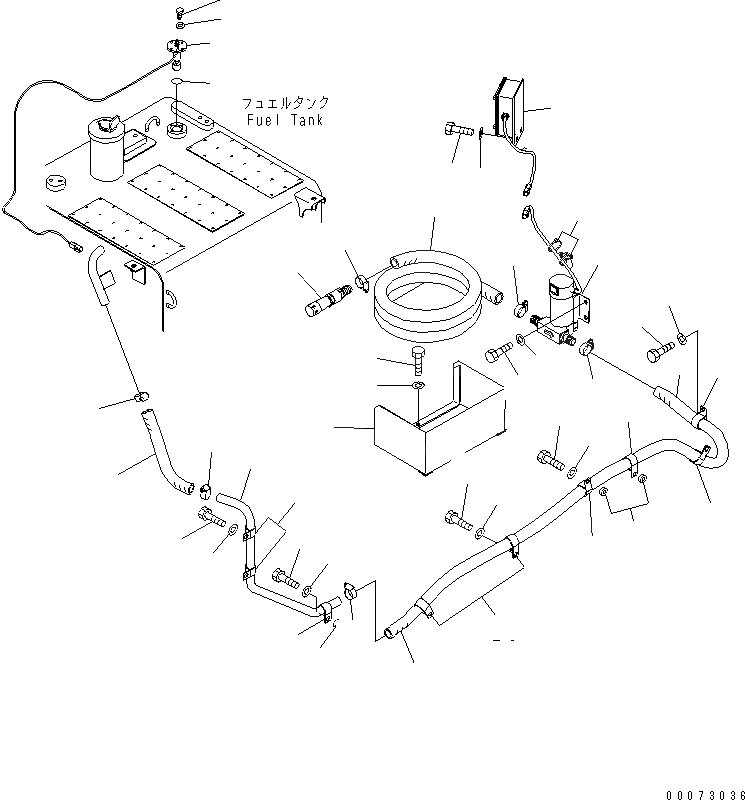

Запчасти Komatsu PC290NLC-8K ТОПЛИВН. REFILL НАСОС (/) (№K-) D ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

206-04-K1113

Pump

|1

206-04-K1112

Pump

2

20Y-04-K2450

Valve Assembly

3

20Y-04-K2351

Hose

4

206-04-K1121

Hose

5

206-04-K1131

Hose

6

20Y-04-K3081

Switch Assembly

|6

20Y-04-K4021

Switch

|6

20Y-04-K3094

Flange

|6

07002-11223

O-Ring

7

07000-13032

O-Ring

8

20Y-04-K4081

Switch Box Assembly

9

01010-81230

Bolt

10

01643-31232

Washer

11

01010-81225

Bolt

12

01643-31232

Washer

13

07289-00035

Clamp

14

07289-00035

Clamp

15

206-04-21120

Tube

16

04434-52512

Clip

17

01010-81235

Bolt

18

01643-31232

Washer

19

04434-52512

Clip

20

21T-72-14590

Spacer

21

01010-81235

Bolt

22

01643-31232

Washer

23

07289-00035

Clamp

24

07289-00035

Clamp

25

581-04-22290

Clip

26

581-04-22290

Clip

27

581-04-22290

Clip

28

01010-81225

Bolt

29

01643-31232

Washer

30

01010-81225

Bolt

31

01643-31232

Washer

32

198-43-15310

Collar, 10mm

33

01010-81235

Bolt

34

01643-31232

Washer

35

07289-00035

Clamp

36

20Y-04-38170

Bracket

37

01010-81020

Bolt

38

01643-31032

Washer

39

08034-20519

Band

40

01010-80616

Bolt

41

01645-30623

Washer
