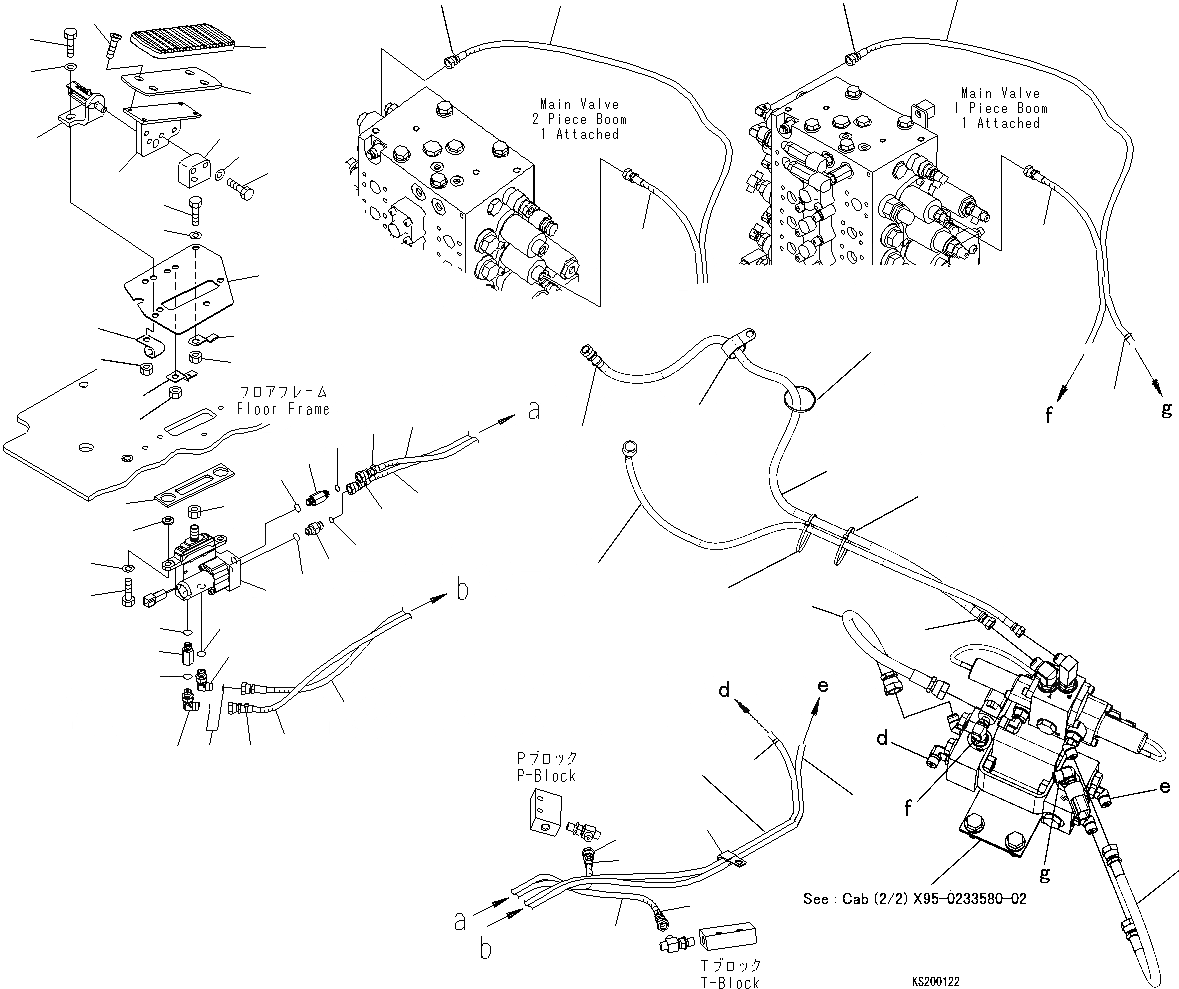

Запчасти Komatsu PC290NLC-8K КАБИНА (/) 1-СЕКЦИОНН. СТРЕЛА , -ATT И 2-СЕКЦИОНН. СТРЕЛА , ATT КЛАПАН EPC (№K-) K OPERATORґS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-04290

Valve, Pilot

2

22U-54-25660

Seal

3

20Y-43-41760

Seat

4

01010-81025

Bolt

5

01643-31032

Washer

6

01643-31032

Washer

7

20Y-62-25360

Bracket

8

01010-D1035

Bolt

9

01643-71032

Washer

10

20Y-53-14220

Pedal

|10

207-43-81250

Pedal

11

01010-D1045

Bolt

12

01643-71032

Washer

13

22U-54-25541

Plate

14

01010-81025

Bolt

15

01643-31032

Washer

16

207-43-81220

Plate

17

01240-00816

Screw

18

207-43-81240

Cap

19

20T-910-8660

Nipple

20

07000-12011

O-Ring

21

21W-62-43980

Elbow

22

02896-11008

O-Ring

23

07000-12011

O-Ring

24

20Y-62-43470

Nipple

25

02896-11008

O-Ring

26

11Y-62-12140

Nipple

27

02896-11008

O-Ring

28

07000-12011

O-Ring

29

20Y-62-52330

Hose

30

02760-00222

Hose

31

02760-00221

Hose

32

208-62-72480

Hose, 1080mm

33

20Y-62-22790

Band, Red

34

20Y-62-22810

Band, Yellow

35

20Y-62-22820

Band, Blue

36

04435-51210

Clip

37

01583-11408

Nut

38

08193-21012

Clip

39

08053-01510

Clip

40

01580-01008

Nut

41

01580-01008

Nut

42

04434-50610

Clamp

43

01580-01008

Nut

44

02760-00215

Hose

45

02760-00221

Hose

46

20Y-62-22810

Band, Yellow

47

02760-00204

Hose

48

02760-00314

Hose

49

20Y-62-22820

Band, Blue

50

20Y-62-42190

Hose

51

08034-20536

Band

52

04434-53412

Clip
