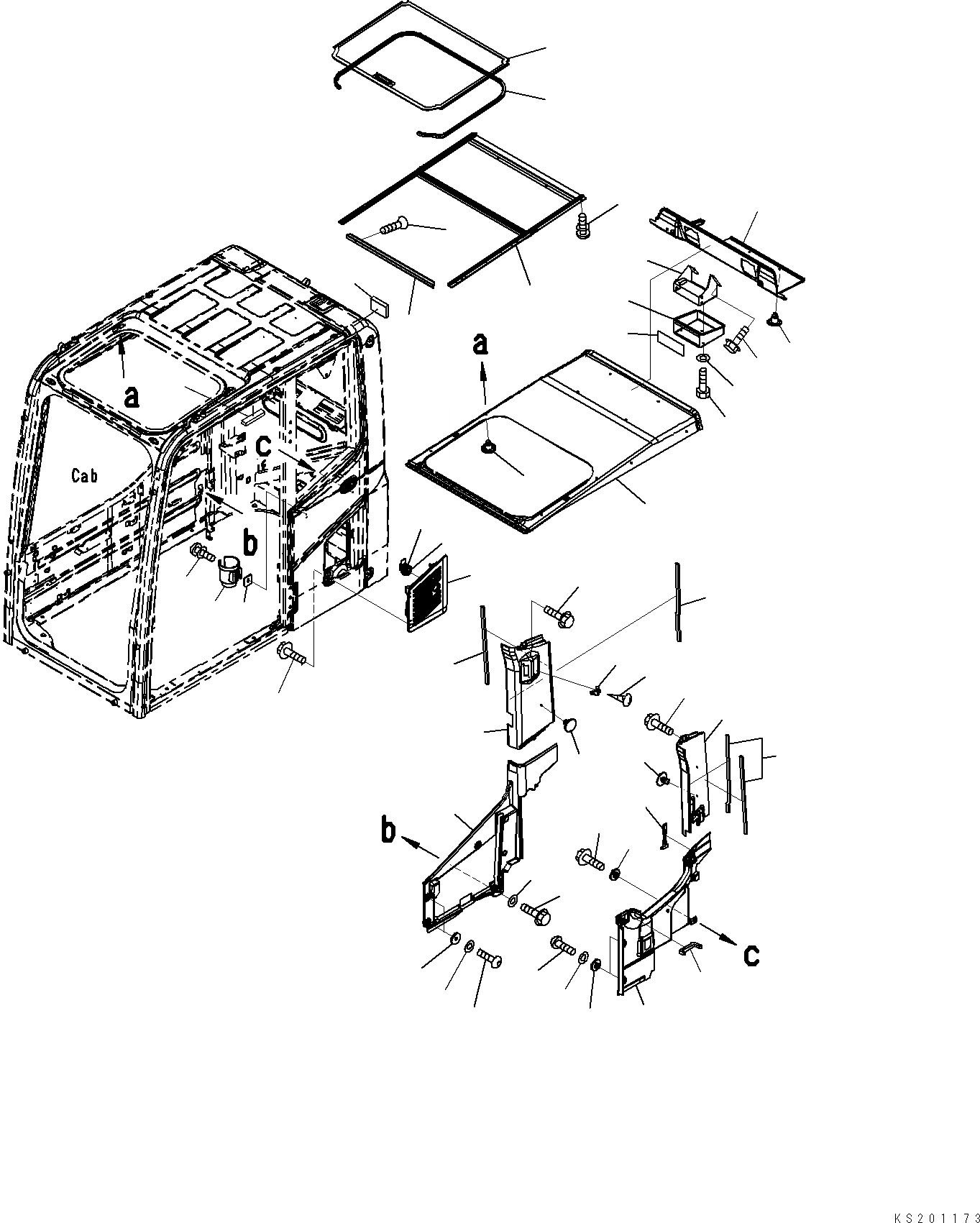

Запчасти Komatsu PC290NLC-8K КАБИНА (/) K OPERATORґS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

|1

206-53-00410

Cab Assembly (ROPS)

|1

206-53-00112

Cab Assembly

|1

206-53-00080

Cab Assembly

1

20Y-53-13712

Cover

2

09416-10200

Rivet

|2

20Y-53-13722

Cover Assembly

|2

20Y-53-13721

Cover Assembly

3

20Y-53-13732

Cover

|3

20Y-53-13731

Cover

4

20Y-53-13781

Rail

|4

20Y-54-53281

Plate

|4

20Y-54-53341

Plate

5

01023-10410

Screw

6

20Y-53-13751

Trim

|6

20Y-53-13750

Trim

7

20Y-53-13763

Plate

|7

20Y-53-13762

Plate

8

01224-70408

Screw, Philips Head

9

208-53-22140

Seal

10

20Y-53-18240

Cover

11

09416-10200

Rivet

12

20Y-53-13870

Seal

13

20Y-53-12431

Cover

14

208-53-13270

Rivet

15

01435-00612

Bolt

16

20Y-53-12710

Seal

17

20Y-53-12441

Cover

18

09416-10200

Rivet

19

01435-00612

Bolt

20

20Y-53-12710

Seal

21

20Y-53-12552

Seal

22

20Y-53-12463

Cover

23

20Y-53-12310

Collar

24

01245-00616

Screw

25

01643-70623

Washer

26

01435-00612

Bolt

27

22B-54-17380

Hammer

28

20Y-53-12472

Cover

29

20Y-53-12310

Collar

30

01245-00616

Screw

31

01643-70623

Washer

32

01435-00612

Bolt

33

20Y-53-18230

Bracket

34

01435-40610

Bolt

35

20Y-53-18251

Cover

36

01245-00612

Screw

37

01643-70623

Washer

38

20Y-53-18320

Cover

39

205-54-51250

Hanger

40

01370-30416

Screw

41

208-53-12991

Holder

42

208-53-12980

Plate

43

01023-20616

Screw

44

20Y-53-11752

Cover

45

01435-40610

Bolt

46

20Y-53-11761

Lock Assembly

|46

20Y-53-11762

Lock Assembly

47

205-54-76280

Rotor
