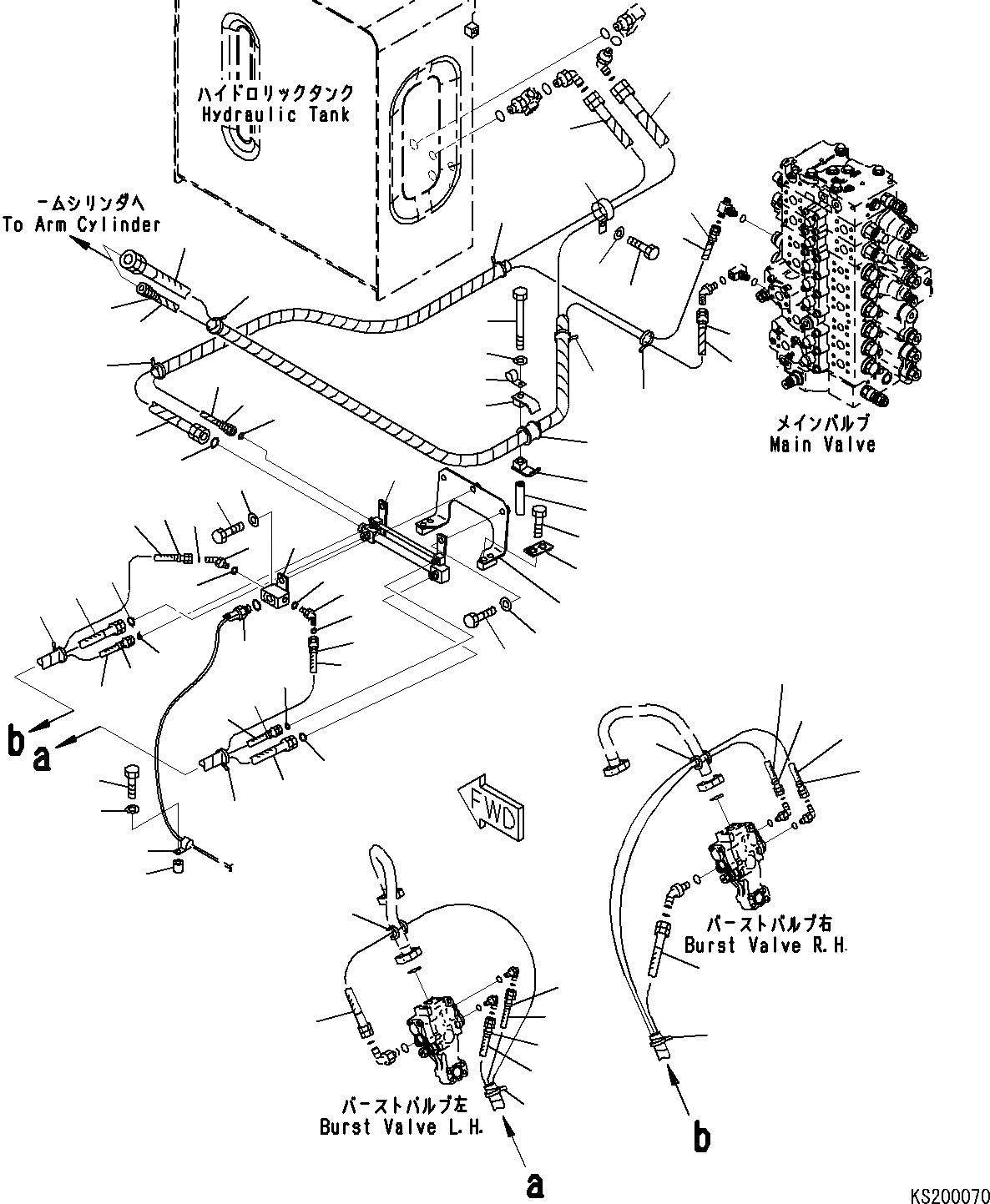

Запчасти Komatsu PC290NLC-8K СТРЕЛА И РУКОЯТЬ HOLDING КЛАПАН КОНТУР (2-СЕКЦИОНН. СТРЕЛА) (/) H ГИДРАВЛИКА

1

22U-62-27290

Bracket

2

01010-81255

Bolt

3

20Y-62-13450

Plate

4

22U-62-27280

Block

5

01010-81230

Bolt

6

01643-31232

Washer

7

11Y-62-12240

Elbow

8

11Y-62-12160

Elbow

9

07002-11423

O-Ring

10

02896-11008

O-Ring

11

7861-93-1812

Sensor

|11

7861-93-1811

Sensor

|11

7861-93-1650

Sensor

|11

07002-61823

O-Ring

|11

07002-11823

O-Ring

12

20Y-62-42730

Tube

13

01010-81230

Bolt

14

01643-31232

Washer

15

02896-11008

O-Ring

16

02896-11012

O-Ring

17

02896-11015

O-Ring

18

02762-00407

Hose

19

02777-00213

Hose

20

02760-00212

Hose, L=1200mm

21

08034-20823

Band

22

20Y-62-22790

Band, Red

23

20Y-62-22850

Band, Green

24

02762-00412

Hose

25

02760-00208

Hose, 800mm

26

02777-00208

Hose

27

08034-20823

Band

28

20Y-62-22790

Band, Red

29

20Y-62-22850

Band, Green

30

08034-20823

Band

31

02760-00320

Hose

32

02762-00627

Hose

33

08034-20823

Band

34

20Y-62-22820

Band, Blue

35

195-01-16420

Collar

36

07094-10620

Clamp

37

07095-00628

Cushion

38

04434-51812

Clip

39

01011-81265

Bolt

40

01643-31232

Washer

41

02760-00217

Hose

42

02762-00521

Hose

43

08034-20823

Band

44

20Y-62-22860

Band, Brown

45

198-61-14180

Clip

46

01010-81220

Bolt

47

01643-31232

Washer

48

08034-20414

Band

49

04434-51012

Clip

50

195-33-11220

Spacer

51

01010-81250

Bolt

52

01643-31232

Washer
