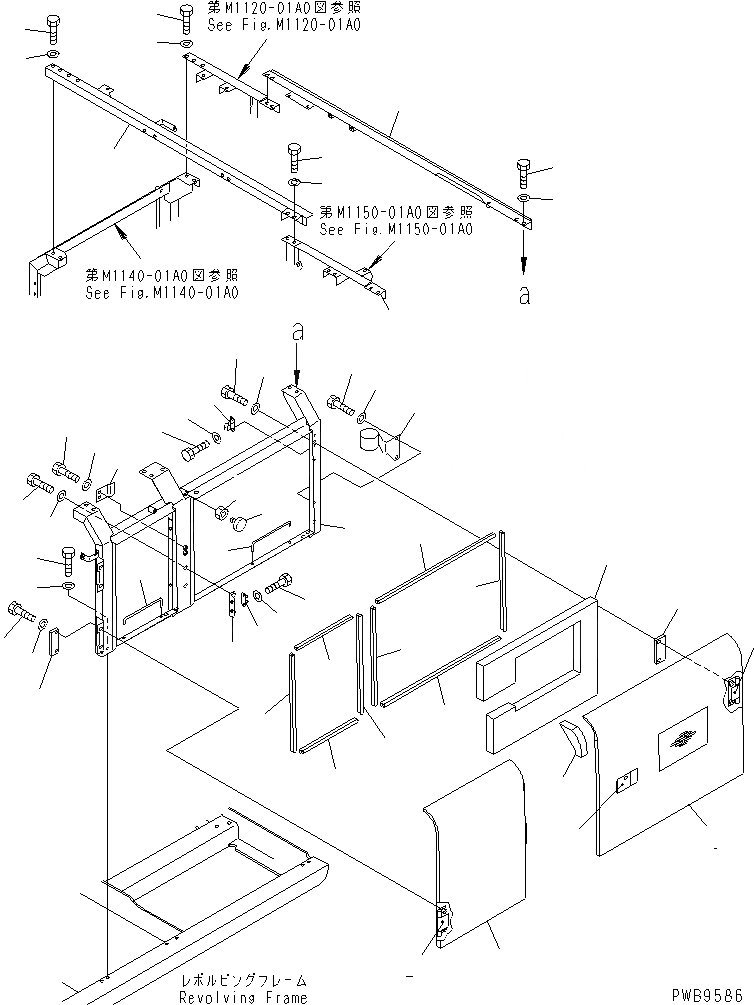

Запчасти Komatsu PC290NLC-6K ЛЕВ. ДВЕРЬ (ДВЕРЬ) (КАБИНА)(№K-K) ЧАСТИ КОРПУСА

1

20Y-54-K7533

COVER

2

20Y-54-K7450

HINGE (WELDED)

3

20Y-54-28390

PLATE

4

01010-81235

BOLT

5

01643-31232

WASHER

6

206-54-K2610

COVER

7

20Y-54-K7450

HINGE (WELDED)

8

198-54-41982

LOCK ASS'Y

9

01010-81235

BOLT

10

01643-31232

WASHER

11

01010-81240

BOLT

12

01643-31232

WASHER

13

20Y-54-28291

PLATE

14

20Y-54-K6540

FRAME

15

20Y-54-28170

BRACKET

16

01010-81230

BOLT

17

01643-31232

WASHER

18

20Y-54-K7421

PLATE

19

01010-81230

BOLT

20

01643-31232

WASHER

21

20Y-54-29232

BAR

22

20Y-54-29232

BAR

23

20Y-54-K9281

BRACKET

24

20Y-54-12920

CLAMP

25

01010-81025

BOLT

26

01643-31232

WASHER

27

20Y-54-11611

STOPPER

28

01580-11008

NUT

29

206-54-K2630

SHEET

30

205-54-51970

DOVE TAIL

31

01010-80616

BOLT

32

01643-30623

WASHER

33

20Y-54-K8932

FRAME

34

20Y-54-25361

FRAME

35

01010-81230

BOLT

36

01643-31232

WASHER

37

01010-81230

BOLT

38

01643-31232

WASHER

39

01010-81230

BOLT

40

01643-31232

WASHER

41

20Y-54-K7560

SEAL

42

20Y-54-29251

SEAL

43

20Y-54-K7430

SEAL

44

206-54-K2840

SHEET
