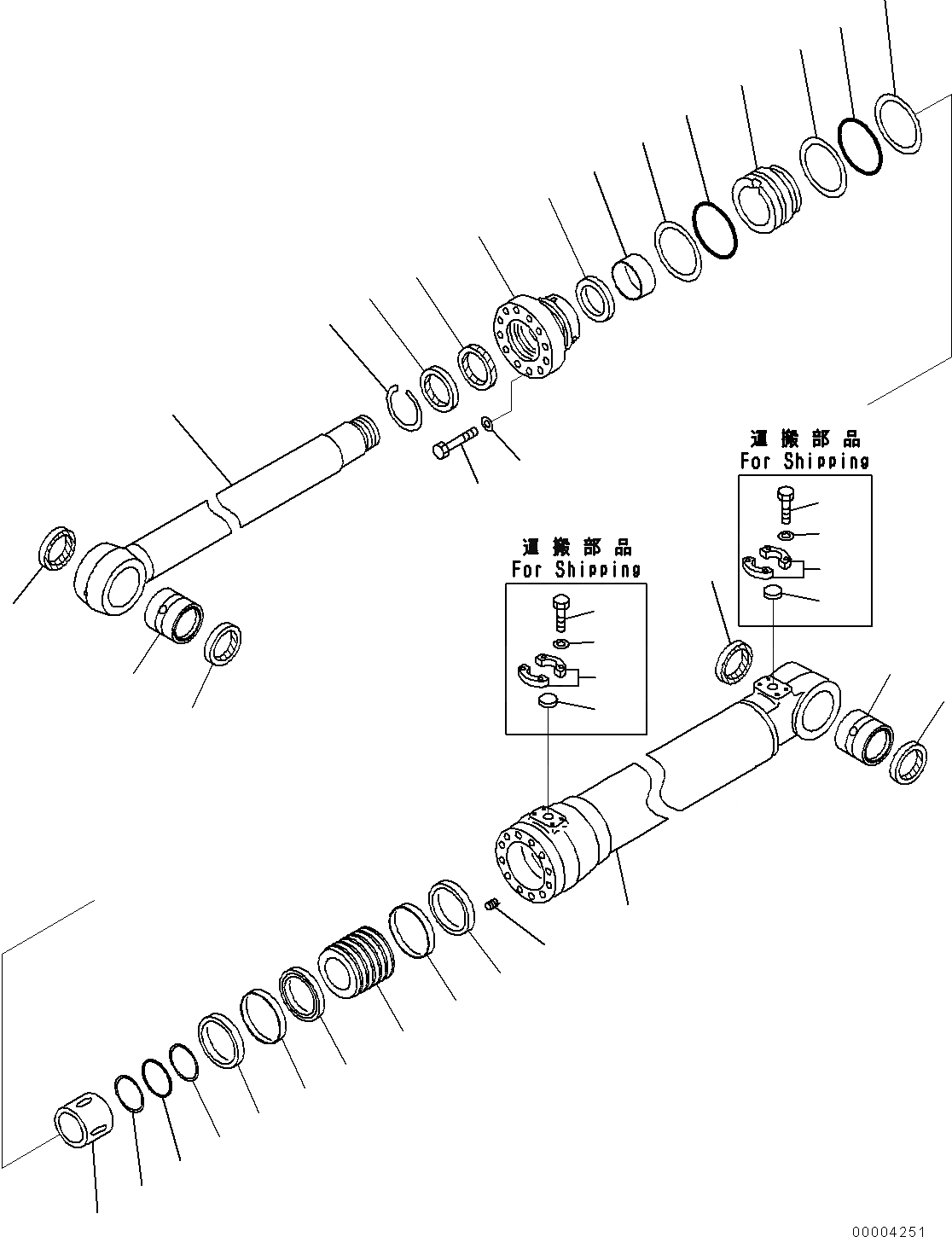

Запчасти Komatsu PC290LC-8K ЦИЛИНДР СТРЕЛЫ(RAISE ЛИНИЯ ) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) (/) T РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-0U560

Cylinder Assembly, Boom Lift

|1

707-01-0F320

Cylinder Assembly

1

707-13-14730

Cylinder

2

707-76-80431

Bushing

3

07145-00080

Seal, Dust

4

707-58-10920

Rod, Piston

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust

7

707-27-14930

Head

8

07179-13114

Ring, Snap

9

176-63-56170

Seal, Dust

10

707-52-90780

Bushing

11

707-51-10030

Packing

12

07000-15130

O-Ring

13

707-35-91420

Ring, Back-Up

14

707-51-10640

Ring

15

01010-81875

Bolt

16

707-41-11840

Washer

17

707-36-14650

Piston

18

707-44-14180

Ring, Piston

19

707-39-14110

Ring, Wear

20

707-44-14910

Ring

21

707-71-71040

Plunger

22

07000-15090

O-Ring

23

07001-05090

Ring, Back-Up

24

01310-01216

Screw

25

707-71-34850

Collar

26

707-35-91420

Ring, Back-Up

27

07000-15130

O-Ring

28

707-88-33030

Cap

29

07371-30640

Flange, Split

30

07372-21035

Bolt

31

01643-31032

Washer

|1

707-01-0U560

Cylinder Assembly, Boom Lift

|1

707-01-0F320

Cylinder Assembly

1

707-13-14730

Cylinder

2

707-76-80431

Bushing

3

07145-00080

Seal, Dust

4

707-58-10920

Rod, Piston

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust

7

707-27-14930

Head

8

07179-13114

Ring, Snap

9

176-63-56170

Seal, Dust

10

707-52-90780

Bushing

11

707-51-10030

Packing

12

07000-15130

O-Ring

13

707-35-91420

Ring, Back-Up

14

707-51-10640

Ring

15

01010-81875

Bolt

16

707-41-11840

Washer

17

707-36-14650

Piston

18

707-44-14180

Ring, Piston

19

707-39-14110

Ring, Wear

20

707-44-14910

Ring

21

707-71-71040

Plunger

22

07000-15090

O-Ring

23

07001-05090

Ring, Back-Up

24

01310-01216

Screw

25

707-71-34850

Collar

26

707-35-91420

Ring, Back-Up

27

07000-15130

O-Ring

28

707-88-33030

Cap

29

07371-30640

Flange, Split

30

07372-21035

Bolt

31

01643-31032

Washer
